F-COMFORT BALL VALVE, BUTTERFLY HANDLE, 1/2" M-F,

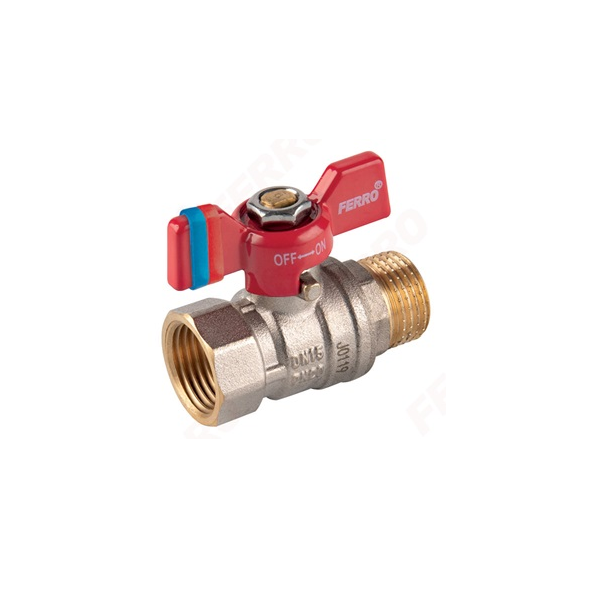

The F-Comfort KFCM1 is a premium-quality ½″ nut-nut (male–female) ball valve, equipped with a butterfly (wing) handle for easy quarter-turn control. It’s engineered for potable water and central heating systems, blending hygiene, reliability, and service convenience.
Key features include:
Hygienic Build: Crafted from CW617N-4MS brass, a lead- and nickel-reduced material, with all water-contacting surfaces nickel-free, ensuring safety for drinking water applications.
Sealing & Stem Design: PTFE seals on both the ball and stem, with a built-in gland allowing simple clearance adjustment using a standard wrench.
Operating Specs:
Pressure Rating: 20 bar (PN 20)
Maximum Temperature: up to 100 °C
Quality & Warranty: Leak-tested 100%, compliance with national hygiene and technical standards, awarded Gold Medal at Poznań 2020/2021, and backed by a 5-year warranty
Product Details
Specifications Table — KFCM1 (½″ M–F, Butterfly Handle)
Specification | Detail |
|---|---|
Model / Index | KFCM1 (F-Comfort series) |
Connection | ½″ Male–Female (nut-nut), G ½″ |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Max. Working Temperature | 100 °C |
Material (Body & Ball) | Brass CW617N-4MS (hygienic standard) |
Seal Material | PTFE (ball & stem) |
Nickel-Free Wetted Parts | Yes |
Handle Type | Metal butterfly (wing) handle |
Stem Gland | Yes – adjustable with wrench |
Certifications & Recognition | Hygienic Certificate; National Technical Assessment; Gold Medal in Poznań 2020/2021 FerroCeneo.plFerro Valv |
Warranty | 5 years |
Dimensions & Flow (KFCM1) | A = 12 mm; d = 47 mm; B = 52 mm; C = 35.5 mm; Kvs = 5.34 m³/h |
Packaging | Individual: 24 pcs; Bulk: 120 pcs |
