Alnor

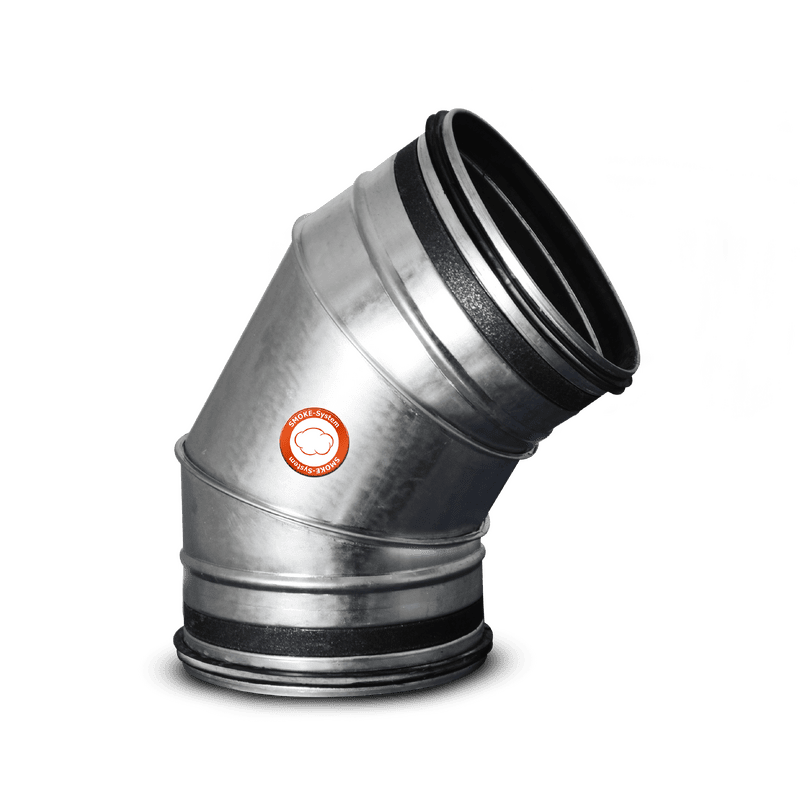

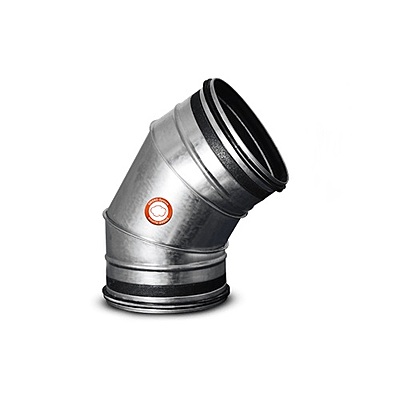

SMOKE EXTRACTION SEGMENTED BEND 45-D200MM
High-performance 45° segmented smoke extraction bend, Ø200 mm, certified to E600 120 (ho) S1500 single for fire-rated smoke extraction systems. Engineered for continuous operation at high temperatures (up to 600°C for 120 minutes) and built to airtightness Class D per PN-EN 12237. Suitable for both single-compartment smoke extraction and dual-function systems (ventilation + smoke exhaust).
SKU - VESBE45200
€46,33
€46,34
In stock:
0
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Type | Smoke Extraction Segmented Bend |
| Bend Angle | 45° |
| Diameter | Ø200 mm |
| Fire Classification | E600 120 (ho) S1500 single |
| Temperature Resistance | Up to 600°C for 120 minutes |
| Airtightness | Class D (PN-EN 12237) |
| System Type | Single-compartment & dual-function smoke extraction |
| Pressure / Velocity Class | S1500 – high-velocity smoke extraction |
| Orientation | (ho) – horizontal installation |
| Material | Reinforced galvanized steel |
| Construction Type | Segmented bend, fire-rated construction |
| Connection Method | Circular duct ends (male) compatible with smoke-rated fittings |
| Application | Smoke extraction systems, fire-rated HVAC, industrial ventilation |
| Features | Corrosion-resistant, high rigidity, stable airflow, fire-tested component |
