ANTIFREEZE VALVE-CIMBERIO

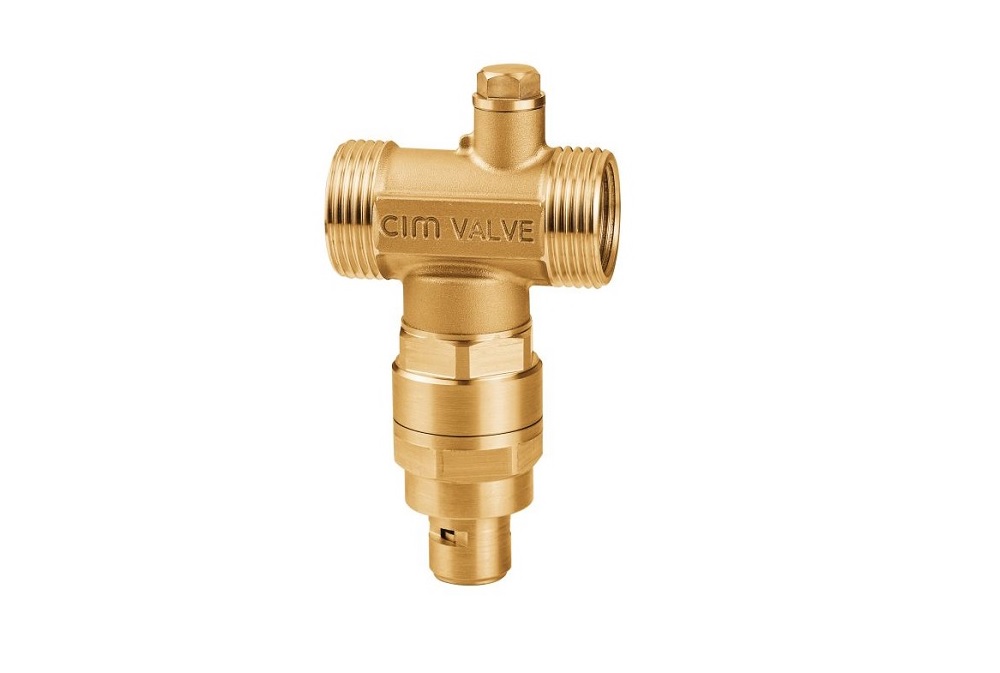

The Cimberio CIM 138 Antifreeze Valve is engineered to protect heat pump systems from freeze damage. When the circulating fluid’s temperature drops close to freezing (around 3 °C), this valve automatically opens to drain a small amount of fluid, preventing freeze-induced pipe bursts.
Ideal for installations in cold climates, it ensures operational reliability and helps avoid costly repairs.
Product Details
Specifications Table – Cimberio CIM 138
Specification | Details |
|---|---|
Model / Type | CIM 138 Antifreeze Valve |
Primary Function | Detect and open to release fluid when temperature ≤ 3 °C |
Opening Temperature | ~3 °C |
Closing Temperature | ~4 °C |
Temperature Accuracy | ±1 °C |
Max Static Working Pressure | 10 bar |
Fluid Temperature Range | 0 °C to 65 °C |
Ambient Temperature Range | –30 °C to +60 °C |
Medium Type | Water |
Body Material | Brass (EN 12165 CW617-DW) |
Sealing (O-rings) | EPDM Peroxide-cured |
Thread Standard | ISO 228 (G) |
Installation Orientation | Vertical, with outlet facing downward |
Recommended Install Locations | Outdoors on both flow and return lines, away from heat sources |
Standards / Notes | Prevents freeze when system is pressurized; avoid trap-style connections |
Typical Sizes | G ¾″, 1″, 1¼″, 1½″ |
