ARIANEX LITE 120M-T R32

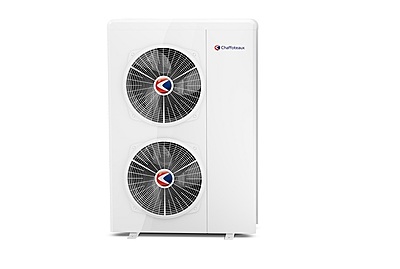

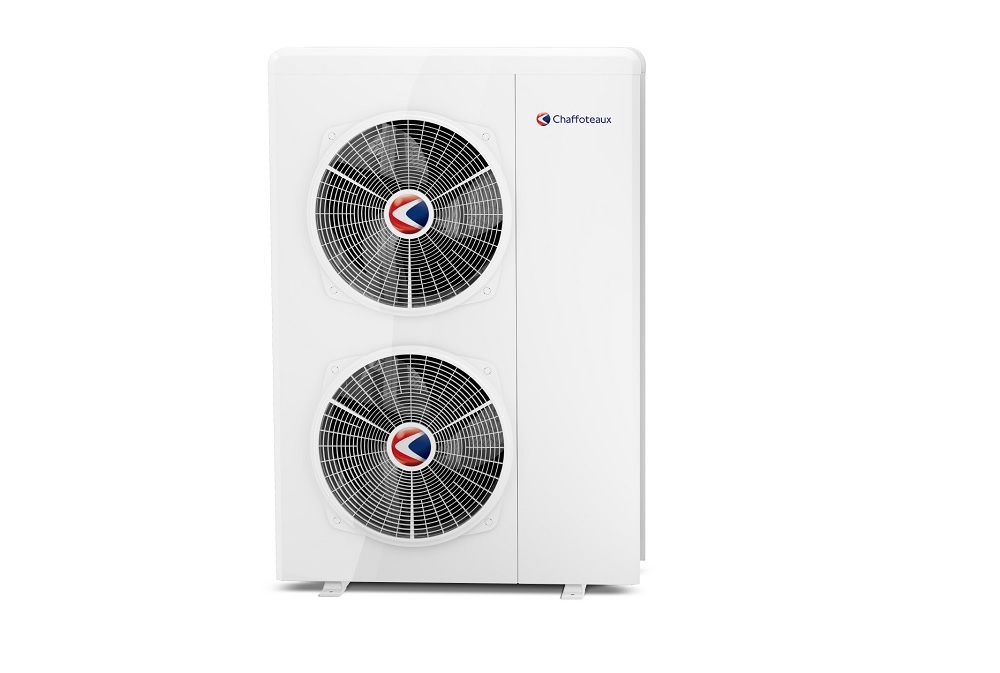

The ARIANEXT LITE 120 M‑T R32 is a monoblock air‑to‑water heat pump designed for residential and light commercial heating and cooling applications. Built around a twin‑rotary compressor with inverter control and brushless fan, it delivers powerful and silent operation—even under partial load—while maintaining excellent COP and EER values. Built‑in Wi‑Fi works with ChaffoLink App for smart control and remote diagnostics.
Product Details
Technical Specifications
Specification | Details |
|---|---|
Nominal Heating Output (Ta +7 °C, Tw 35 °C) | 12 kW |
Nominal Heating COP | ~ 4.9 |
Full Capacity Heating (Pn) (Ta +7 °C, Tw 35 °C) | 12 kW |
Heating Output at Ta –7 °C | ~ 9.5 kW |
Cooling Output (Ta 35 °C, Tw 18 °C) | ~ 10.7 kW |
Cooling EER (nominal) | ~ 5.1 |
Refrigerant | R32 (environmentally friendly, GWP 675) |
Sound Power Level | ~ 58 dB(A) |
Maximum Flow Temperature | up to 60 °C (model‑dependent) |
Air Temperature Operating Range | –20 °C to +35 / 60 °C |
Water Connections | 1″ (female thread) |
Power Supply | 400 V / 3‑phase, 50 Hz |
Weight (Outdoor Unit) | ~ 131 kg |
IP Protection | IP24 |
Control Interface | Built‑in Wi‑Fi interface; ChaffoLink app compatible; optional remote assistance via network |
Smart Features | Remote operation, voice control with Alexa & Google Assistant, energy‑efficient modulation |
Certifications/Energy Classes | Heating A+++/A++ at 35 °C/55 °C (ERP) |
This unit is ideal for efficient year-round climate control, offering silent operation (down to ~53 dB(A) in lower capacity models), excellent seasonal efficiency (COP & EER), and smart home capability from standard Wi‑Fi and app support.
