ARIANEXT LITE 35M R32

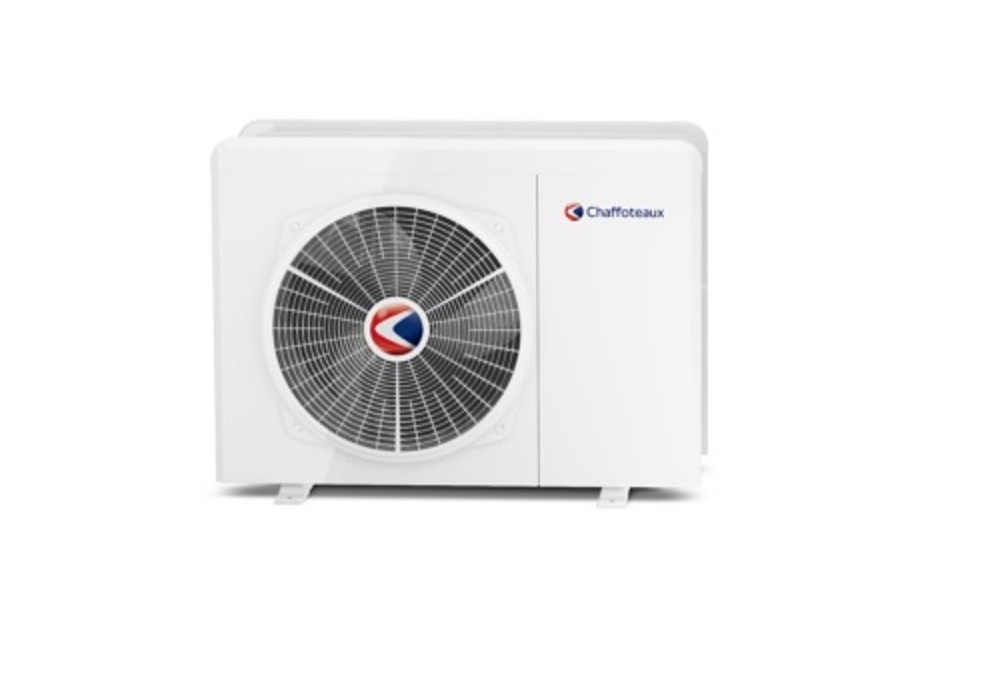

The ARIANEXT LITE 35 M LINK R32 by Chaffoteaux is a compact inverter-driven monobloc heat pump using eco‑friendly R32 refrigerant, delivering 3.5 kW nominal heating capacity. Designed for both heating and cooling, it features ultra-quiet operation (up to 53 dB(A)), simple plug‑and‑play installation, and full smart connectivity with built‑in Wi‑Fi and Expert HD control interface, all controllable via the ChaffoLink app, with optional voice control and remote assistance
Product Details
Specifications
Feature / Condition | Value (35 M LINK R32) |
|---|---|
Nominal heating output(Ta +7 °C, Tw 35 °C) | 3.5 kW (COP ≈ 5.1) |
Full-load heating output (Pn)(Ta +7 °C, Tw 35 °C) | 5.9 kW (COP ≈ 4.6) |
Heating at −7 °C(Ta −7 °C, Tw 35 °C) | 3.5 kW (COP ≈ 3.1) |
Cooling output(Ta 35 °C, Tw 18 °C) | 4.1 kW (EER ≈ 5.3) |
Cooling output(Ta 35 °C, Tw 7 °C) | 3.5 kW (EER ≈ 3.4) |
Heating energy class (ErP) | A+++ (35 °C flow) / A++ (55 °C flow) |
Sound power (outdoor) | ≤ 53 dB(A) |
Refrigerant | R32 (GWP ≈ 675) |
Voltage / Phase / Frequency | 230 V, single‑phase, 50 Hz |
Installation type | Monobloc plug‑and‑play; optional Light Box (IPX5) and puffer tanks (30 L/50 L) |
Control / Connectivity | Expert HD interface (built‑in), Wi‑Fi, ChaffoLink app, optional voice control and tele‑assistance |
