Chaffoteaux
ARIANEXT COMPACT 80 S-T LINK R32

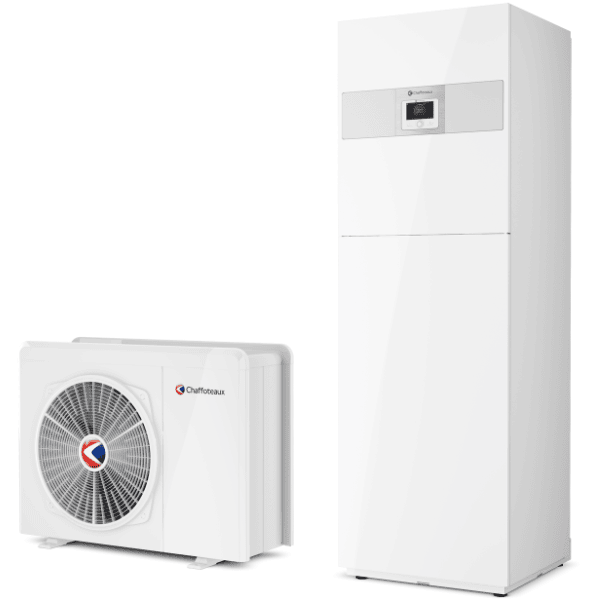

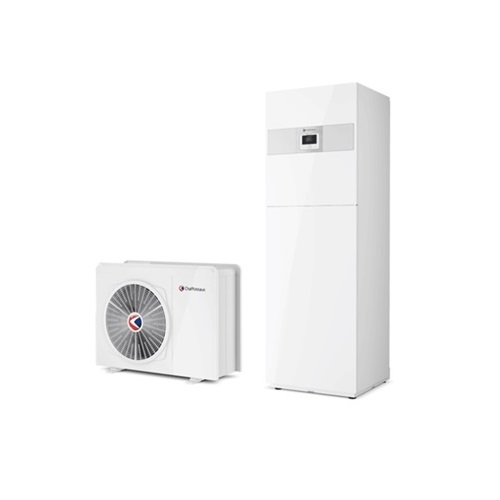

The Ariston Arianext Compact 80 S-T Link is a space-efficient air-to-water split heat pump with an integrated domestic hot water (DHW) module, designed for modern residential applications. Powered by 3-phase supply and using R32 refrigerant, it delivers a nominal output of 8 kW and a maximum heating capacity of 11.74 kW. The Compact series combines high energy efficiency, quiet operation, and advanced LINK connectivity, offering a complete, all-in-one solution for heating and hot water in low-energy homes and small villas.
Non-returnable
SKU - CFCS80T
€8.662,94
€8.662,95
In stock:
0
Choose Qty:
Product Details
| Specification | Value |
|---|---|
| Model | Arianext Compact 80 S-T Link |
| Power Supply | 400V / 3-phase / 50Hz |
| Refrigerant | R32 (Low GWP) |
| Nominal Heating Capacity | 8.0 kW |
| Maximum Heating Capacity | 11.74 kW |
| DHW Storage Capacity | Integrated indoor tank (typically 150L) |
| Energy Efficiency (35°C) | A+++ |
| Energy Efficiency (55°C) | A++ |
| SCOP (Average Climate) | ~4.0–4.3 (typical) |
| Operating Temperature Range | Down to approx. –20°C |
| System Type | Split (S-T configuration) with tank module |
| Compressor Type | Inverter DC Twin Rotary |
| Sound Power Level | ~58–62 dB(A) |
| Connectivity | Ariston NET / LINK communication |
| Applications | Heating + DHW, underfloor heating, radiators, fan coils |
| Controller | Integrated Sensys control system |
