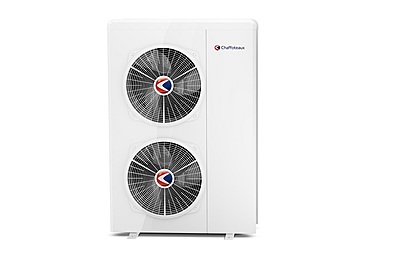

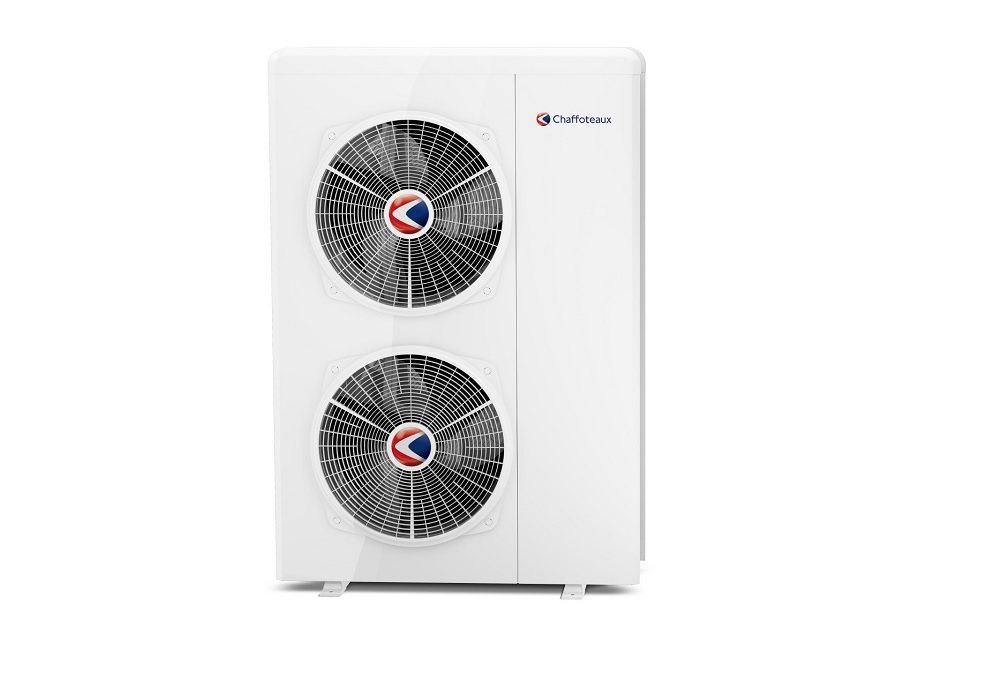

ARIANEXT LITE 120M R32
The ARIANEXT LITE 120 M‑Link R32 is a high-efficiency air‑to‑water heat pump designed for residential and light commercial heating and cooling. Featuring a DC twin‑rotary compressor, inverter-driven brushless fan, integrated Wi‑Fi, and smart control via ChaffoLink App, this single‑phase variant offers powerful performance, whisper‑quiet operation, and energy-efficient modulation ideal for homes without three-phase supply.
Product Details
Technical Specifications
Specification | Details |
|---|---|
Heating Capacity (Ta +7 °C, Tw 35 / 30 °C) | Nominal: 12 kW; Full capacity: up to ~14.4 kW |
COP (Nominal) | ~ 4.9 at +7 °C ambient / 35 °C water; ~ 3.2 at –7 °C |
Cooling Capacity (Ta 35 °C, Tw 18 °C) | ~ 10.7 kW; EER ~ 5.1; at 7 °C: ~9.5 kW / EER ~3.2 |
Sound Power Level | ~ 53 dB(A) (lowest in class) |
Refrigerant | R32, GWP 675, refrigerant charge ~2100 g, CO₂ eq ~1.42 t |
Electrical Supply | 230 V single‑phase / 50 Hz |
Power Consumption (Nominal) | ~ 2.45 kW in heating mode; maximum ~5.00 kW |
Water Connections | 1″ male thread |
Operating Range | Air: –20 °C to +60 °C; Flow water: up to 35 °C; Boost up to 60 °C possible |
Noise Class / Energy Rating | Heating: A+++/A++ at 35 °C/55 °C; Seasonal yield up to 143 % |
Weight (Outdoor Unit) | ~ 131 kg (some listings ~124 kg) |
Protection / Build | IP24 rated housing; plug‑and‑play Light Box electric panel (external IPX5 option) |
Smart Control Features | Built‑in Wi‑Fi, Expert HD interface, ChaffoLink App remote control, Alexa & Google voice control, optional remote assistance service |
