ARIANEXT LITE 150M-T R32

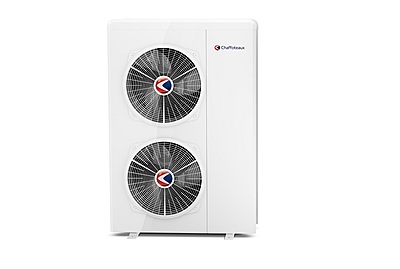

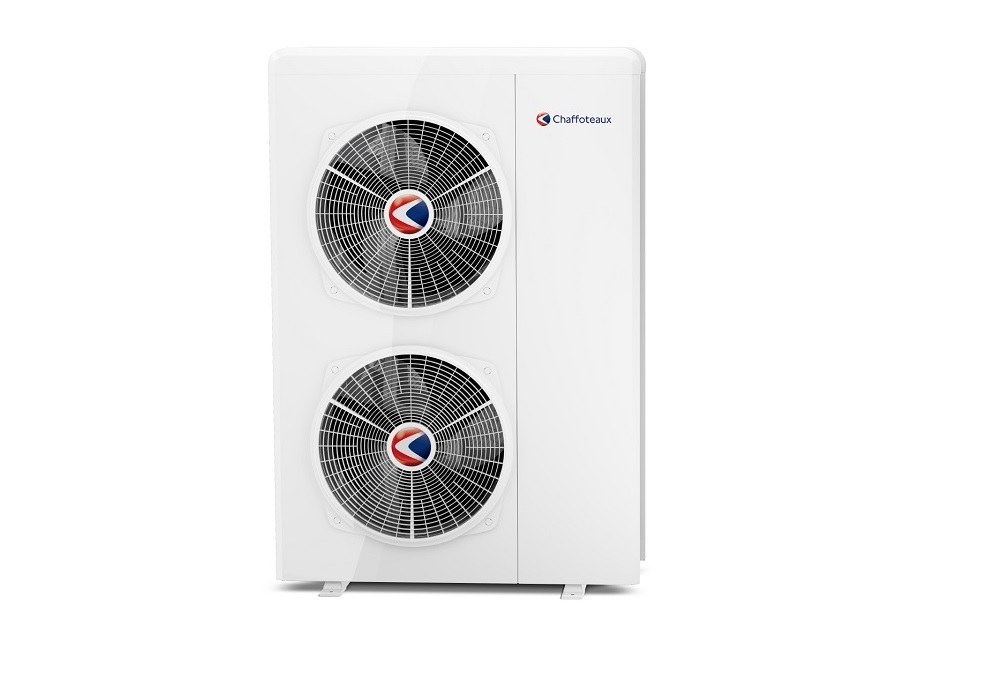

The ARIANEXT LITE 150 M‑T LINK R32 from Chaffoteaux is a 15 kW inverter‑driven monobloc heat pump using eco‑friendly R32 refrigerant. Designed for both heating and cooling, it delivers high efficiency (A+++ energy class), whisper‑quiet operation (≤ 53 dB(A)), three‑phase 400 V power, and seamless smart connectivity via built‑in Wi‑Fi and the Expert HD interface for remote control using the ChaffoLink app, with optional voice control and remote assistance
Product Details
Technical Specifications
Specification | Details |
|---|---|
Nominal Heating Capacity(Ta +7 °C, Tw 35 °C) | ≈ 15 kW, COP ≈ 4.7 |
Heating at −7 °C(Ta −7 °C, Tw 35 °C) | ≈ 11 kW, COP ≈ 3.1 |
Cooling Capacity(Ta 35 °C, Tw 18 °C) | ≈ 12.5 kW, EER ≈ 4.7 |
Cooling Capacity(Ta 35 °C, Tw 7 °C) | ≈ 11 kW, EER ≈ 2.9 |
Sound Power (Outdoor Unit) | ≤ 53 dB(A) |
Refrigerant | R32 (GWP ≈ 675), ~2100 g charge |
Voltage / Phase / Frequency | 400 V, 3‑phase, 50 Hz |
Compressor Type | DC twin‑rotary with brushless motor |
Installation / Protection | Plug‑and‑play monobloc, IP24 protection (Light Box option IPX5) |
Smart Connectivity | Wi‑Fi built‑in, Expert HD control, ChaffoLink smartphone app, optional Alexa/Google voice control and remote assistance |
Optional Accessories | Outdoor Light Box (IPX5), puffer tanks (30 L or 50 L), electric backup resistance |
Ideal Applications | Residential or light‑commercial heating & cooling systems requiring up to ~15 kW output |
