ARIANEXT LITE 80M R32

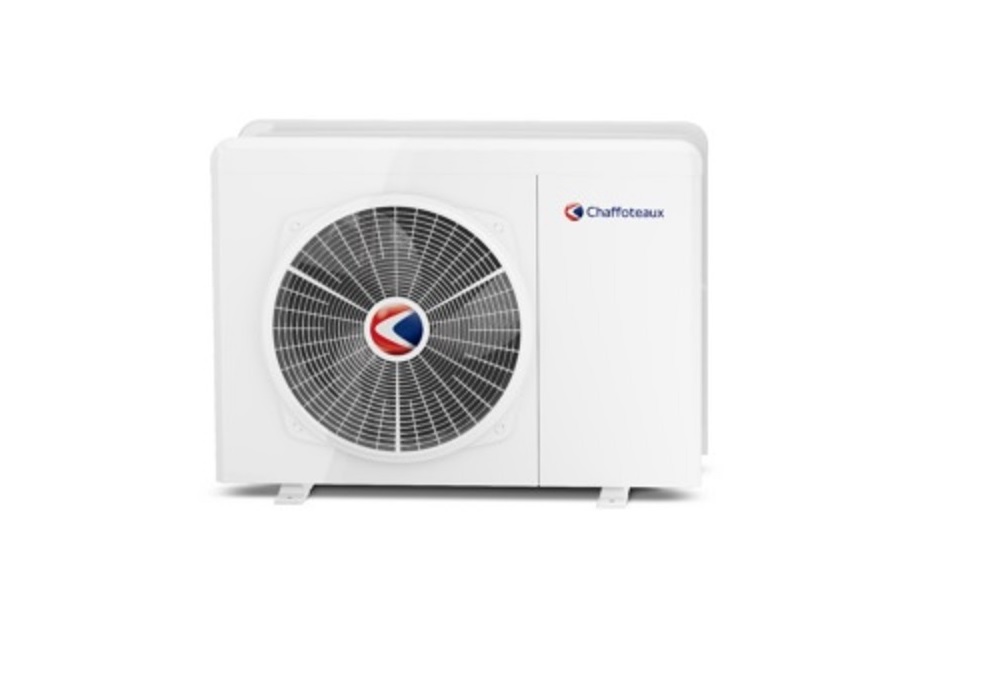

The ARIANEXT LITE 80 M LINK R32 by Chaffoteaux is a 230 V single-phase inverter-driven monobloc heat pump using environmentally friendly R32 refrigerant. With a nominal heating capacity of ~8 kW, it delivers excellent seasonal efficiency (ErP class A+++ at 35 °C flow / A++ at 55 °C flow), boasts low-noise operation (≈ 56 dB(A)), and offers plug‑and‑play installation. Features include built‑in Wi‑Fi, Expert HD control interface, ChaffoLink remote management, optional voice assistant support, and remote tele‑assistance options
Product Details
Specifications Table
Feature / Condition | Value (80 M LINK R32) |
|---|---|
Nominal heating output(Ta +7 °C, Tw 35 °C) | ≈ 8.0 kW, COP ≈ 4.8 |
Max heating capacity (Pn)(Ta +7 °C) | ~11.7 kW, COP ≈ 4.6 |
Heating at −7 °C(Ta −7 °C, Tw 35 °C) | ~7.4 kW, COP ≈ 3.0 |
Cooling output(Ta 35 °C, Tw 18 °C) | ~7.0 kW, EER ≈ 4.7 |
Cooling output(Ta 35 °C, Tw 7 °C) | ~7.0 kW, EER ≈ 3.1 |
ErP Heating Class (35 °C / 55 °C flows) | A+++ / A++ |
Sound power (outdoor unit) | up to ≈ 56 dB(A) |
Refrigerant | R32 (low‑GWP) |
Power / Phase / Frequency | 230 V, single‑phase, 50 Hz |
Installation | Monobloc plug‑and‑play; optional Light Box (IPX5), buffer tanks, backup heater |
Control / Connectivity | Expert HD interface, built‑in Wi‑Fi, ChaffoLink app, optional Alexa/Google voice control, tele‑assistance |
