ARIANEXT LITE 80M-T R32

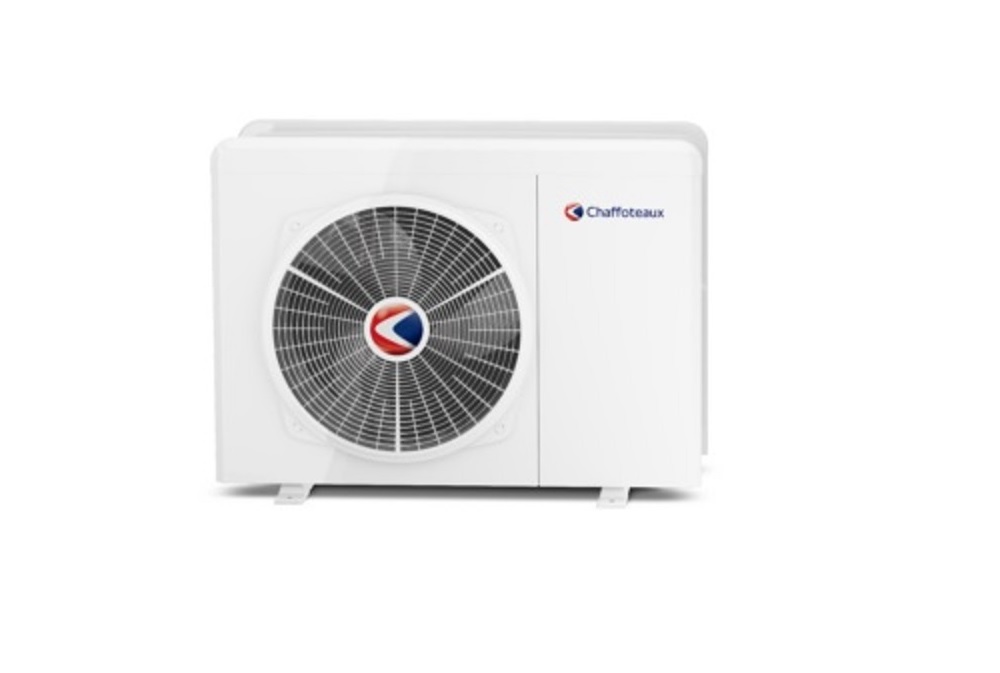

The ARIANEXT LITE 80 M‑T LINK R32 by Chaffoteaux is a powerful inverter-driven monobloc air‑to‑water heat pump (three‑phase 400 V) using eco-friendly R32 refrigerant. With a nominal heating output of ~8 kW, it delivers top-tier energy performance (ErP class A+++ at 35 °C flow / A++ at 55 °C flow), continuous quiet operation (~57 dB(A)), and plug‑and‑play installation flexibility. Integrated Wi‑Fi and the Expert HD interface support remote control via the ChaffoLink app, optional voice assistant integration, and tele‑assistance services.
Product Details
Specifications Table
Feature / Condition | Value (80 M‑T LINK R32) |
|---|---|
Nominal heating output(Ta +7 °C, Tw 35 °C) | ≈ 8.0 kW, COP ≈ 4.8 |
Useful heating capacity (Pn) | ≈ 8.7 kW at +7 °C (COP ≈ 4.6) c |
Heating at −7 °C(Ta −7 °C, Tw 35 °C) | ≈ 7.4 kW, COP ≈ 3.0 |
Cooling output(Ta 35 °C, Tw 18 °C) | ≈ 7.0 kW, EER ≈ 4.7 |
Cooling output(Ta 35 °C, Tw 7 °C) | ≈ 7.0 kW, EER ≈ 3.1 |
ErP heating class(35 °C / 55 °C flow) | A+++ / A++ |
Sound power (outdoor unit) | ~57 dB(A) |
Weight (outdoor unit) | ~104 kg |
Refrigerant / Charge / GWP | R32 / ~1,400 g / 675 |
Voltage / Phase / Frequency | 400 V, three‑phase, 50 Hz |
Compressor / Motor Technology | DC twin‑rotary with brushless motor |
Minimum water system volume | ~40 liters |
Ingress protection rating | IP24 standard (Light Box option adds IPX5) |
Optional accessories | Electric backup resistor, CKZ HH 30/50 L buffer tanks, Light Box, Exogel antifreeze kit |
