AUTOMATIC AIR-VENT VALVE ECO 1/2''

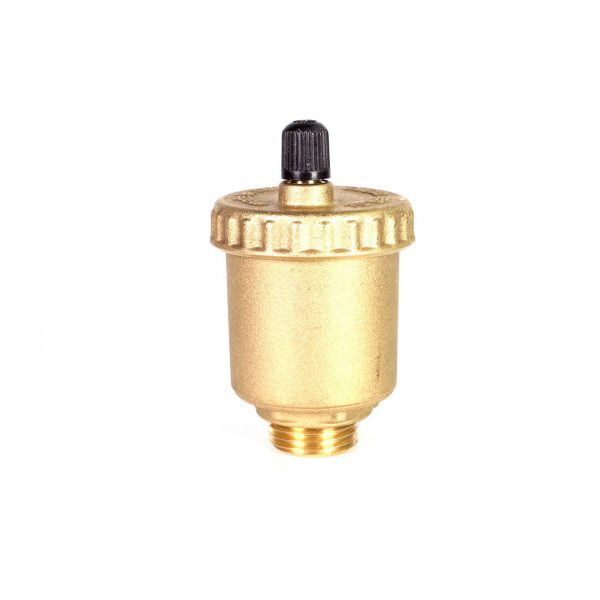

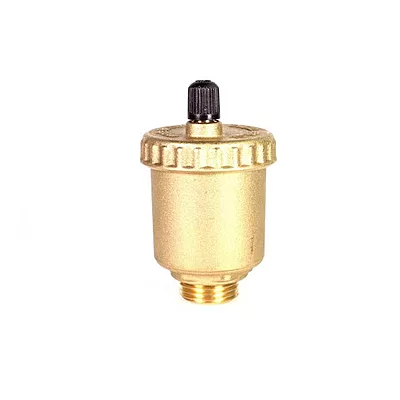

Automatic Air‑Vent Valve ECO
Float‑operated automatic deaerator valve for solar thermal circuits
The Automatic Air‑Vent Valve ECO is engineered to continuously and autonomously purge air from solar thermal systems—especially glycol loops—preserving efficiency and preventing common issues like corrosion, noise, overheating, and pump cavitation. Designed for high-temperature applications (up to 180 °C) and reliable operation under up to 10 bar pressure, it’s a maintenance-minimal solution for installations at high points such as panel headers or buffer tank tops.
Product Details
Technical Specifications
Feature | Specification |
|---|---|
Connection Size | 3/8″ M or 1/2″ M threaded (ISO 228‑1) |
Body & Cover Material | Chrome‑plated brass EN 12165 CW617N |
Float Material | High-resistance polymer |
Seals | EPDM or NBR elastomer—heat-resistant |
Media Compatibility | Water and glycol solutions (up to 50 % glycol) |
Operating Temperature | –30 °C to +180 °C (–20 °F to 360 °F) |
Maximum Operating Pressure | Up to 10 bar (150 psi) |
Maximum Discharge Pressure | 2.5 bar (3/8″ versions) or 5 bar (1/2″) depending on model |
Installation Position | Vertical only—mount at system high points (e.g. panel manifolds or tank tops) |
Maintenance Note | Should be combined with an upstream shut-off valve for safe isolation during service or commissioning |
