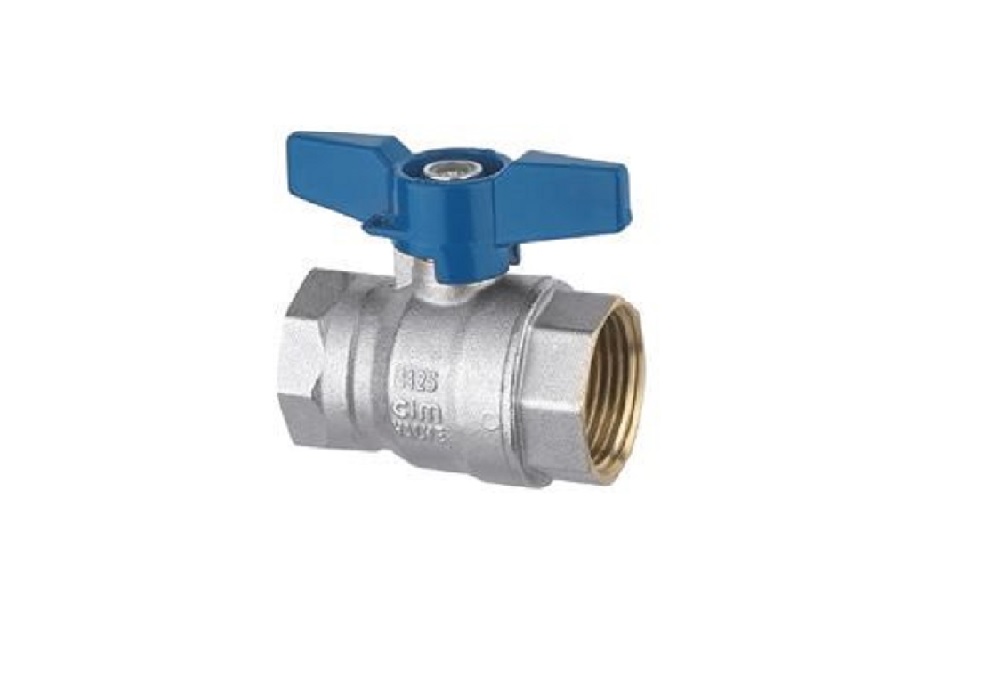

BALL VALVE 1/2'' F-F -CIMBERIO
The Cimberio APM ½″ F–F Full-Bore Ball Valve excels in performance and reliability:
Minimal pressure loss and smooth fluid passage due to the full-bore design.
Robust and durable construction suited for a wide range of plumbing applications.
Broad pressure and temperature tolerance—PN 80 and –20 °C to 150 °C.
Reliable performance metrics and torque behavior for both operation and maintenance.
High quality assurance with leak testing, ISO certification, and a solid 5-year warranty.
Available Offer
Product Details
Specifications Table – Cimberio APM Series (½″ F–F Full-Bore Ball Valve)
Specification | Value / Detail |
|---|
Series / Model | Cimberio APM 1050ST / APM FB (F–F) |
Connection Type | ½″ Female × Female (ISO 228) |
Construction Material | Brass (EN 12165 CW617N-DW) |
Internal Finish | Chromium-plated, mirror-finish ball |
Pressure Rating (PN) | PN 80 (½″) |
Temperature Range | –20 °C to +150 °C |
Flow Coefficient (Kv) | 17 m³/h @ 1 bar Δp |
Operating Torque (Cm) | 3 Nm |
Starting Torque (Cs) | 6 Nm |
Stem Breaking Torque (MT) | 10 Nm |
Testing & Standards | EN 12266-1 leak tested; ISO 9001; 5-year warranty |
