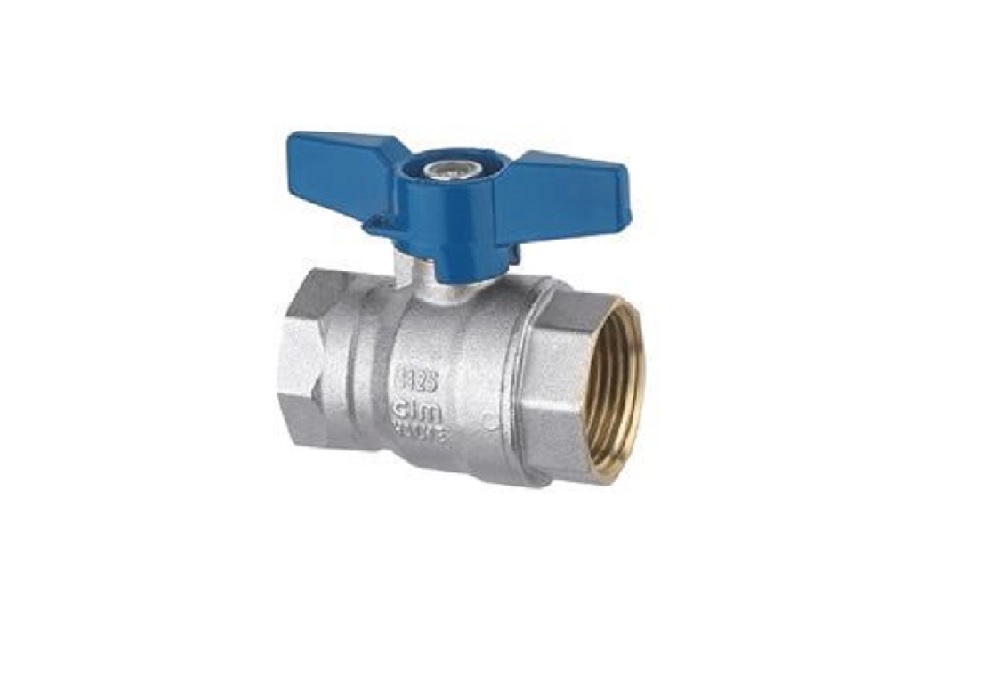

BALL VALVE 3/4'' F-F-CIMBERIO

Configuration

Female–Female (F–F), threaded

Nominal Size

¾″ (DN 20)

Body Material

DZR Brass (e.g., CW625N)

Ball Finish

Full-bore, chrome-plated, mirror polish

Thread Standard

ISO 228 (G) or ISO 7 (Rp)

Pressure Rating

Typically PN 45 or PN 60

Operating Temperature Range

–20 °C to +150 °C

Flow Coefficient (Kv)

41 m³/h @ 1 bar Δp

Operating Torque (Cm)

5 Nm

Starting Torque (Cs)

10 Nm

Stem Break Torque (MT)

24 Nm

Standards & Quality

ISO 9001; 100% leak-tested (EN 12266-1)

Warranty

5 years
