BUTTERFLY VALVES M-F WITH UNION-3/4''-CIMBERIO

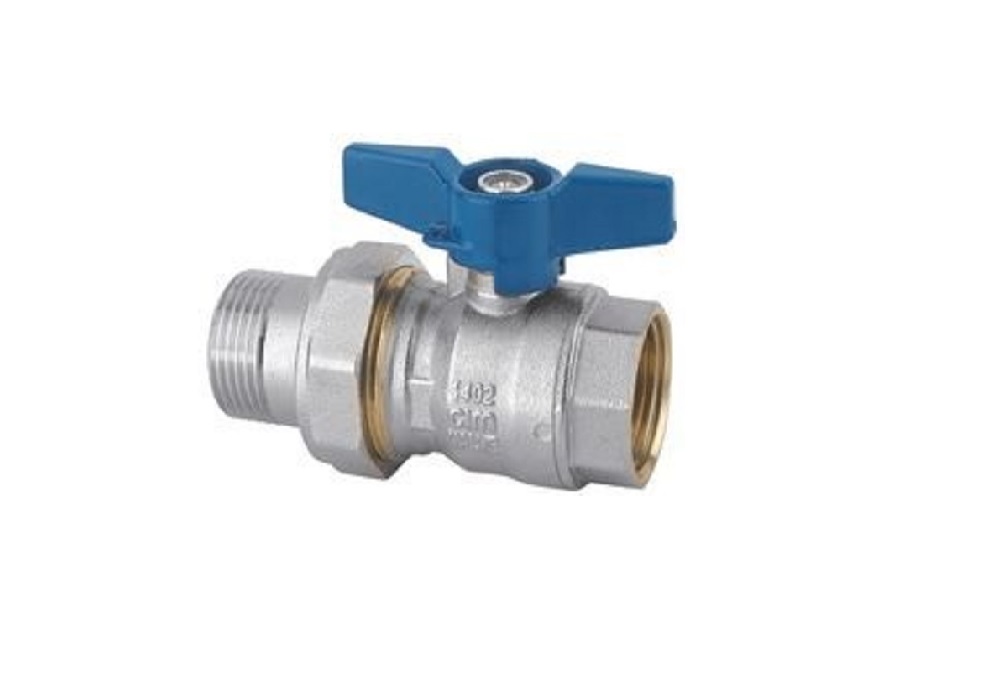

The Cimberio ¾″ Fullway ball valve (M–F union, butterfly handle) combines:
Efficient fluid flow, thanks to full-bore design and minimal turbulence.
Ease of maintenance, with a union connection enabling quick valve removal without uninstalling piping.
Compact and ergonomic operation via the butterfly handle.
Robust performance, suitable for up to 25 bar pressure and –20 to +120 °C temperatures.
Reliable build, backed by recognized quality testing and a solid 5-year warranty.
Available Offer
Product Details
Specifications Table – Cimberio T14 Type 346 (¾″ M–F with Union)
Specification | Details |
|---|
Model / Series | Cimberio Fullway T14 (Type 346) |
Connection | ¾″ Female × ¾″ Male (union joint) |
Body Material | Brass (EN 12165 CW617N-DW) |
Ball Design | Full-bore, chrome-plated |
Handle | Butterfly (aluminium) |
Pressure Rating (PN) | 25 bar (PN 25) |
Operating Temperature | –20 °C to +120 °C |
Flow Coefficient (Kv) | 41 m³/h @ 1 bar Δp |
Operating Torque (Cm) | 5 Nm |
Starting Torque (Cs) | 10 Nm |
Stem Break Torque (MT) | 24 Nm |
Standards & Testing | ISO 9001; EN 12266-1 leak-tested |
Warranty | 5 years |
Key Benefits | Full-bore flow, union disassembly, compact handle |
