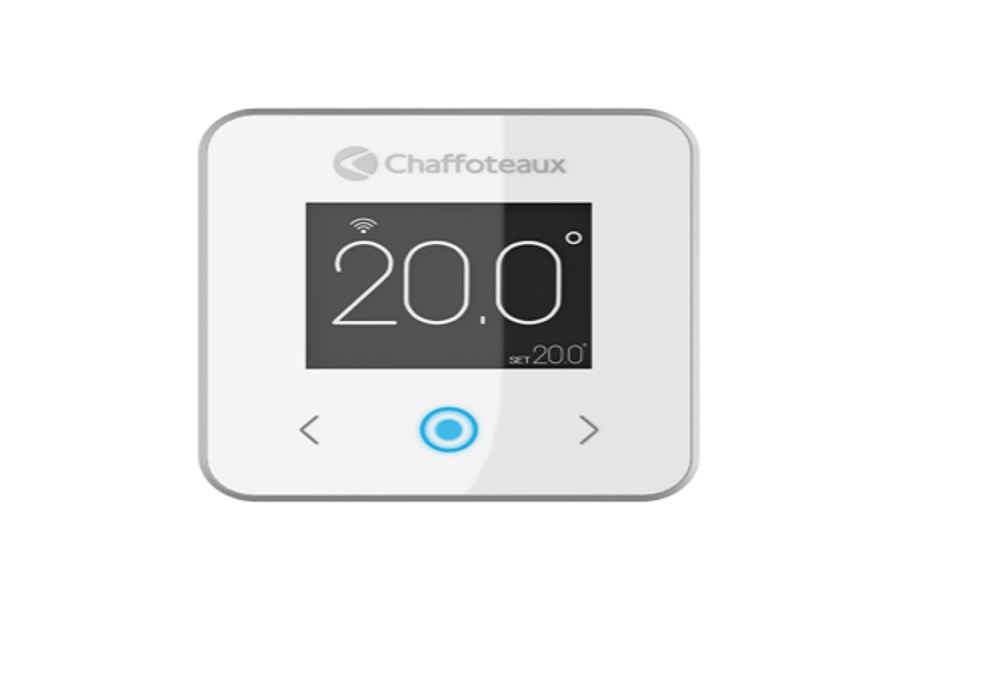

CHAFFOTEAUX SMART CONTROL LINK
The Smart Control Link is a sleek, Wi‑Fi–connected room thermostat designed to seamlessly integrate with Chaffoteaux heating, cooling, or solar systems via the ChaffoLink platform. Its intuitive interface and remote control capabilities give users smart, energy-efficient climate management via smartphone, together with remote diagnostics for authorized technicians
Product Details
Technical Specifications
Specification | Details |
|---|---|
Model / Part No. | Smart Control Link (Chaffoteaux 3319128) |
Power Supply | BUS 8–24 V max; internal 3.7 V / 500 mAh lithium-ion battery |
Current Draw | ≤30 mA |
Operating Temp. Range | 0 °C to 40 °C |
Storage Temperature | –10 °C to +45 °C |
Humidity Range | 20% to 80% RH |
Temperature Sensor Accuracy | ± 0.5 °C |
Ambient Protection Rating | IP20 |
Temperature Control Class | Class V (with external probe: Class VI) |
Energy Efficiency Benefit | +3% seasonal heating efficiency (or +4% with probe) |
Connectivity | Built-in Wi‑Fi when connected to ChaffoLink; remote control via smartphone |
Smart Home Integration | Compatible with Amazon Alexa, Apple HomeKit (via ChaffoLink app) |
System Compatibility | Works with Chaffoteaux boilers, heat pumps, solar systems using BridgeNet® BUS protoco |
