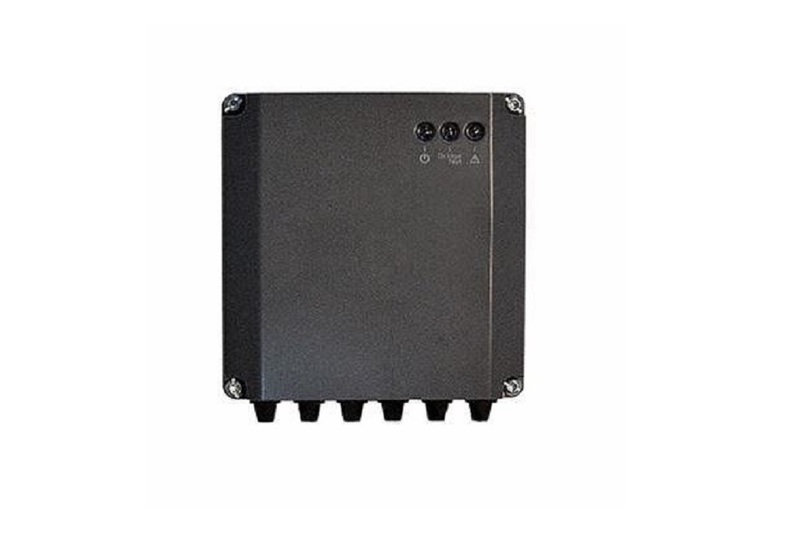

2 ZONES WIRED MANAGEMENT KIT
The Ariston 2‑Zone Wired Management Kit (model 3319130) is a control module engineered to manage two separate zones in a wired hydronic heating or cooling system. It's compatible with Ariston’s Cube thermostat, operates with mains power, and interfaces seamlessly with BridgeNet® BUS boilers, hybrid systems, and heat pumps
Product Details
Specifications Table
Feature | Details |
|---|---|
Manufacturer / Brand | Ariston (also marketed under Chafforeaux Elco |
Model / Product Code | 3319130 (2-Zone Wired Management Kit) |
Function | Controls up to 2 zone valves or circulator pumps |
Power Supply | Mains – 230 V AC, 50 Hz |
Output Contact Type | Relay (SPST dry contact) |
Maximum Contact Current | 5 A @ 230 VAC or 5 A @ 30 V DC |
Bus Compatibility | BridgeNet® BUS compatible (must connect to BridgeNet-equipped generator) |
Consumption | < 10 mA (bus power consumption) |
Cable Requirements | Min. 0.5 mm² for power wiring |
Safety Requirements | Must be installed by qualified technician, with proper grounding and 230 V L-N polarity respect |
Configuration | Outputs (Zone 1 & 2) configured via internal microswitches and system interface |
