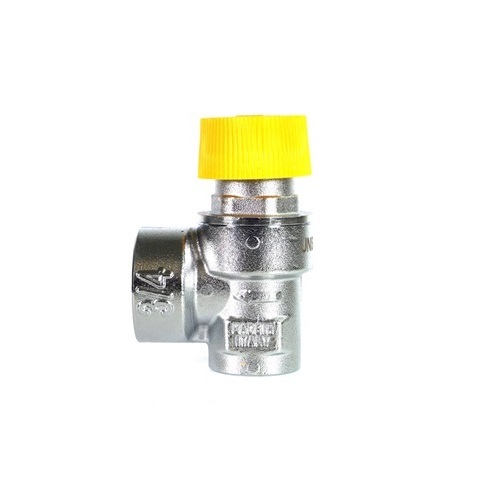

DIAPHRAGM SAFETY VALVE 6B 1/2X3/4
The Unival Diaphragm Safety Valve 6B (1/2" × 3/4") is engineered to provide reliable overpressure protection for hot-water storage tanks, boilers, and hydraulic installations. Equipped with a diaphragm-operated mechanism and stepped 1/2" inlet × 3/4" outlet configuration, it ensures stable discharge flow and long-term system safety.
SKU - SOCOSV6B1234.029
€10,54
€10,55
In stock:
79
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Name | Diaphragm Safety Valve 6B |
| Brand | Unival |
| Inlet Connection | 1/2" |
| Outlet Connection | 3/4" |
| Pressure Setting | 6 bar |
| Valve Type | Diaphragm-operated safety valve |
| Application | Hot-water boilers, solar systems, storage tanks |
| Body Material | Brass (corrosion-resistant) |
| Seal Type | Elastomer diaphragm |
| Function | Overpressure protection / discharge |
| Typical Temperature Range | Up to 95°C (manufacturer standard) |
| Installation | Vertical or horizontal as per system design |
