DISTRIBUTION BOX 8X50 ARIA FLAT500

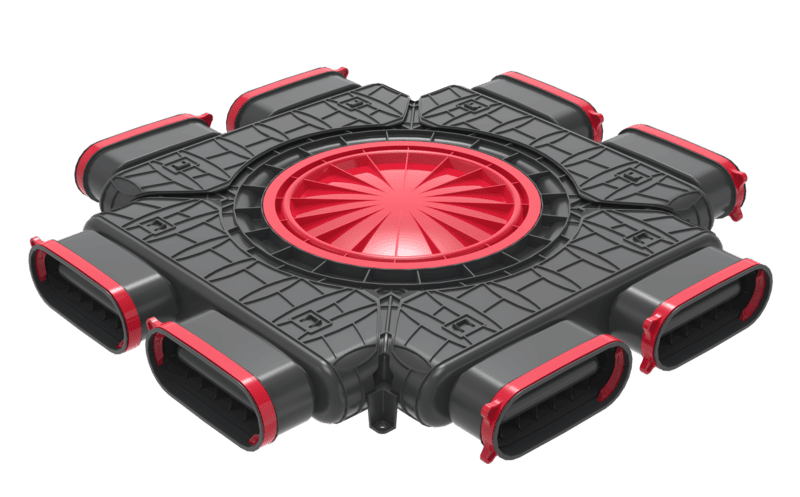

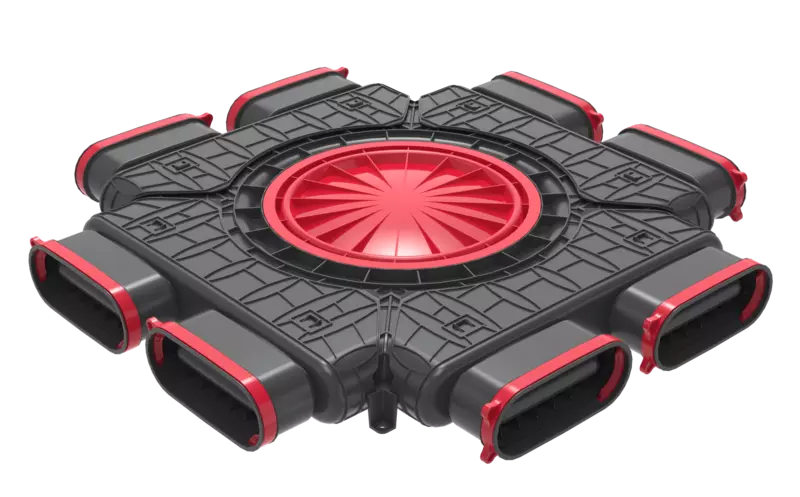

The ventilation distribution box (8×F) – commonly found in HEATPEX ARIA CONNECT systems – is an 8-port air distribution manifold used in mechanical ventilation with heat recovery (MVHR/ERV) installations. It allows connection of eight branch ducts (e.g., Ø 90 mm) to a central ventilation unit, distributing supply or exhaust air throughout a building with high airtightness and tool-free OneClick® connections.
€169,06
€169,07
Choose Qty:
Product Details
| Specification | Detail |
|---|---|
| Product Type | Ventilation distribution box (8-port manifold) |
| System | HEATPEX ARIA CONNECT radial system |
| Ports | 8 × Ø 90 mm branch connections |
| Main Connection | Central or side inlet/outlet (for supply/exhaust) |
| Material | Polypropylene (PP) |
| Connection Tech | OneClick® tool-free sockets |
| Airtightness Class | ATC1 / Class D (EN 17192) |
| Modular Expansion | Can connect horizontally/vertically to add more ducts |
| Weight | ~1.85 kg (for 8×90 mm version) |
| Typical Dimensions | ~522 × 470 × 106 mm (L×W×H) |
| Catalogue Number | 52309000100W (8×90 mm) |
| Application | MVHR/ERV air distribution in residential/commercial ventilation |
