ENGO E30NC-24

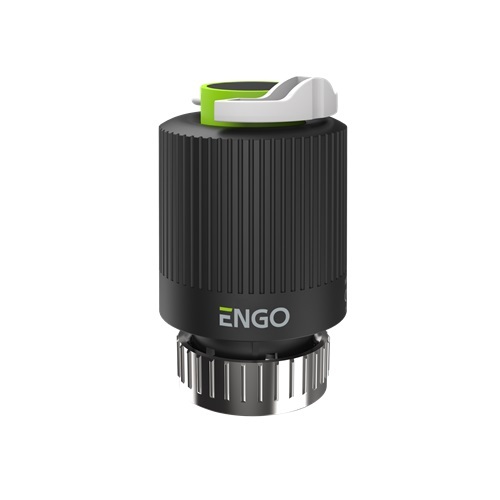

ENGO E30NC-24 is a thermoelectric actuator with 24 V operation and normally closed (NC) configuration. Designed to automate valves in underfloor heating and hydronic systems, it provides reliable control with low power consumption and durable performance for residential and commercial HVAC applications.
€16,54
€16,55
Choose Qty:
Product Details
| Feature | Specification |
|---|---|
| Product Name | ENGO E30NC-24 Thermoelectric Actuator |
| Model | E30NC-24 |
| Type | Thermoelectric valve actuator |
| Operating Voltage | 24 V AC/DC (safety low voltage) |
| Action | Normally Closed (NC) |
| Thread Size | M30 × 1.5 mm |
| Power Consumption | ~2 W |
| Inrush Current | ~300 mA / 200 ms |
| Push/Actuating Force | ~100 N ±15 % |
| Maximum Stroke | ~4.5 mm |
| Protection Class | IP54 / Class II |
| Cable Length | ~90 cm |
| Dimensions | Ø 41×65 mm (approx.) |
| Ambient Temperature | Max. ~60 °C |
| Storage Temperature | −25 °C to +60 °C |
| Application | Underfloor heating manifold valves, HVAC valve automation |
| Warranty | (Insert supplier warranty) |
