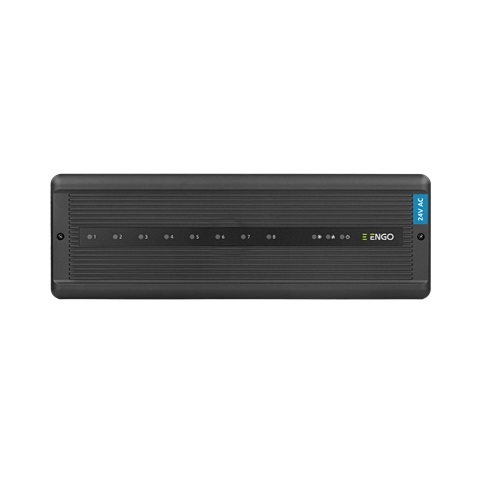

ENGO ECB8-24
The ENGO ECB8-24 is a wired control box for underfloor heating systems with 24 V AC supply, designed to manage up to 8 heating zones, control pumps and boilers, and interface with 24 V actuators. It’s ideal for low-voltage HVAC installations in residential or commercial applications, offering organized wiring, zone control, and built-in protection features.
€89,38
€89,39
Choose Qty:
Product Details
| Feature | Specification |
|---|---|
| Product Name | ENGO ECB8-24 Wired Control Box |
| Model | ECB8-24 |
| Type | Underfloor Heating Wired Control Strip |
| Power Supply | 24 V AC, 50 Hz |
| Number of Controlled Zones | Up to 8 |
| Actuator Compatibility | 24 V AC actuators (Normally Closed recommended) |
| Pump Control Output | Volt-free output (COM-NO), max load 6 A |
| Boiler Control Output | Volt-free output (NO-COM-NC), max load 6 A |
| Total Load Capacity (Fuse) | Max 10 A (via internal fuse) |
| Thermostat Inputs | Wired thermostat inputs (3-wire or 2-wire compatible) |
| Mounting | Flat surface or DIN-rail |
| Connectors | Removable screw terminal blocks |
| Housing Dimensions | ~330 × 110 × 36 mm |
| Applicable Systems | Underfloor heating, hydronic zoned heating control |
| Installation | Indoor, dry conditions only |
| Safety & Compliance | Designed for safe 24 V control circuits |
| Warranty | (Insert applicable terms) |
