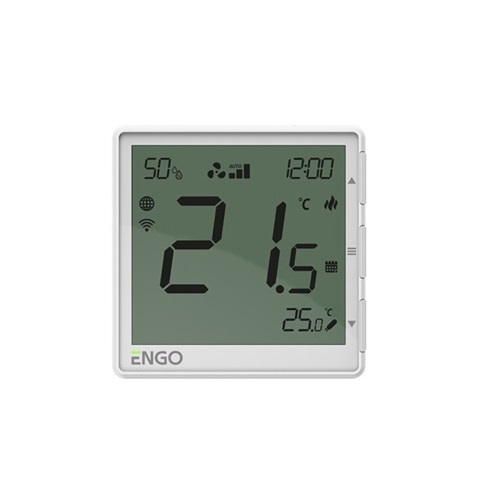

ENGO EFAN-230 WHITE
The ENGO EFAN-230W is a professional Wi-Fi enabled controller designed for advanced management of fan coil units and duct heaters in both 2-pipe and 4-pipe HVAC systems. It provides flexible and precise control of room temperature, humidity, and fan speeds, supporting seamless integration with modern smart building systems via ENGO Smart / Tuya cloud connectivity and Modbus RS-485 communication. Built for indoor installations, it enhances comfort, energy efficiency, and system performance in residential and commercial environments.
€139,51
€139,52
Choose Qty:
Product Details
| Parameter | Specification |
|---|---|
| Product Type | Fan coil & duct heater controller |
| Model | EFAN-230W |
| Power Supply | 230 V AC, 50 Hz |
| Communication | Wi-Fi (2.4 GHz), Modbus RS-485 |
| Display Type | LCD with temperature/humidity icons |
| Temperature Range | 5 °C – 45 °C setpoint |
| Control Modes | AUTO, Heating, Cooling, Fan only |
| Fan Control | 3-speed outputs (Low / Medium / High, 230 V) |
| Valve Outputs | 2 × 230 V AC valve outputs (V1, V2) |
| Fan Outputs | 3 × 230 V AC fan outputs (F1, F2, F3) |
| Inputs | Temp sensors or volt-free contacts (S1/COM, S2/COM) |
| Control Algorithm | Delta FAN & hysteresis |
| ECO Mode | Energy-saving function with optimized setpoints |
| Protection | Frost and overheat protection functions |
| Installation | Flush-mounted / semi-flush installation |
| Dimensions | 90 × 90 × 44 mm (depth ~13 mm after install) |
| Application Areas | Fan coil HVAC systems; mixed fan coil + underfloor heating systems |
| Compliance | EU Directives (e.g., EMC / RoHS) |
