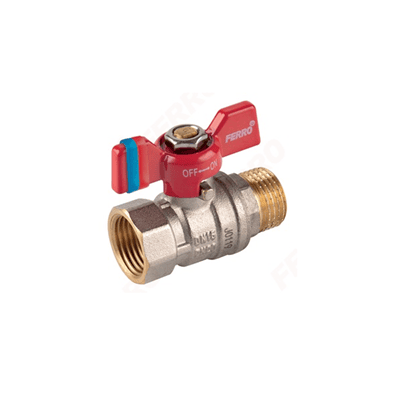

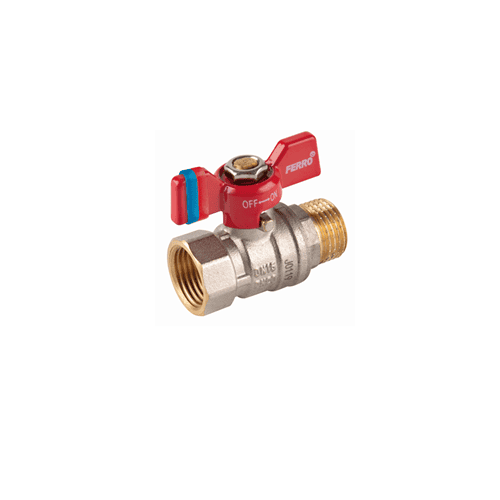

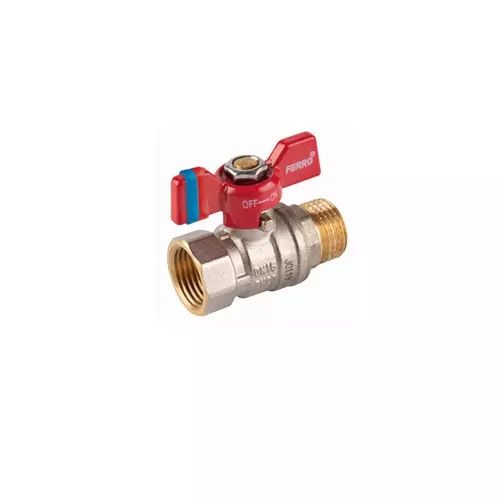

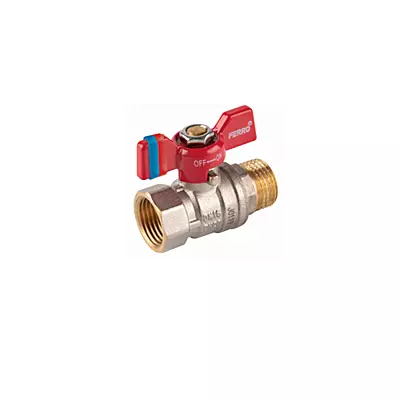

F-COMFORT BALL VALVE, BUTTERFLY HANDLE, 1" M-F,
The F-Comfort KFCM3 (G 1″ M–F, butterfly handle) is a high-quality ball valve crafted for water and central heating systems. Key attributes include:
Reliable Reliability & Hygiene
Constructed from CW617N-4MS brass, the internal surfaces are nickel-free, making the valve safe for potable water applications. The valve features a durable metal butterfly handle and includes a gland for adjustable stem sealing. The ball and stem seals are PTFE.Performance Ratings
Rated at 20 bar (PN20), with a maximum working temperature of 100 °C.Certifications & Quality
As part of the F-Comfort series, the valve earned a Gold Medal at the Poznań 2020/2021 International Trade Fair. All valves are leak-tested and meet national hygiene and technical certifications (Poland). Comes with a 5-year warranty. Ferro Valves
Product Details
Specifications Table – KFCM Series (Butterfly Handle, M–F)
Spec | Detail |
|---|---|
Model / Index | KFCM3 (G 1″ Male–Female) |
Connection | G 1″ M–F |
Nominal Pressure | 20 bar (PN20) |
Max Temp | 100 °C |
Body Material | Brass (CW617N-4MS) |
Internal Finish | Nickel-free |
Seal Material | PTFE (ball & stem) |
Handle | Metal butterfly handle |
Stem Feature | Gland for adjustment |
Warranty | 5 years |
Dimensions | A = 21 mm; d = 63 mm; B = 67.5 mm; C = 49.5 mm |
Flow Coefficient (Kvs) | 21.28 m³/h |
Packaging | Individual: 10 pcs; Bulk: 60 pcs |
Details sourced from FERRO’s KFCM product index table.
