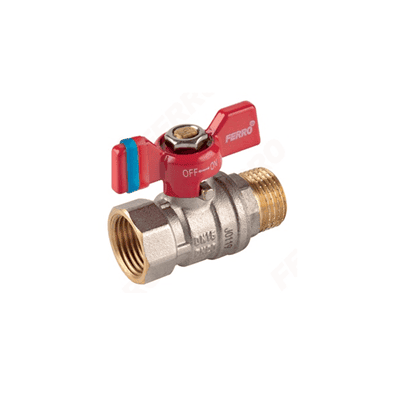

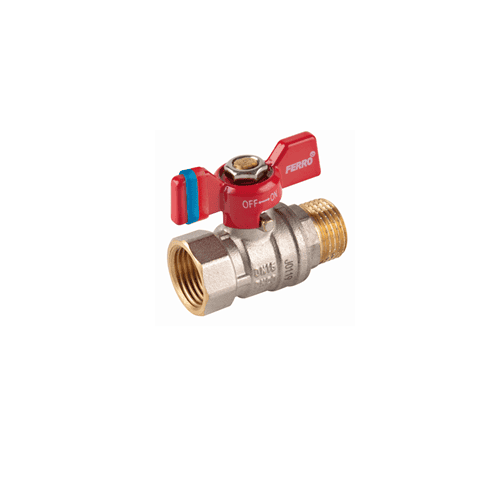

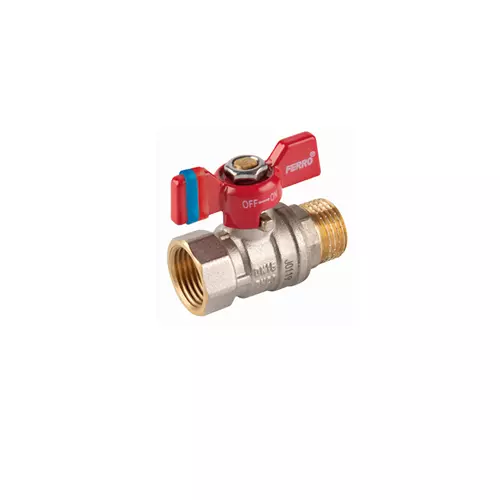

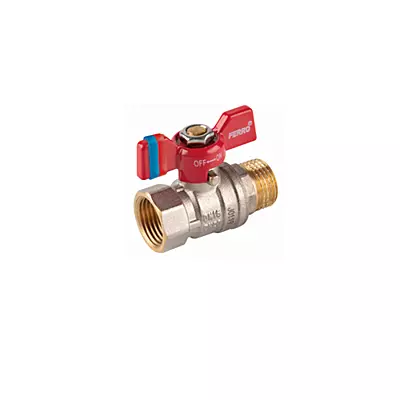

F-COMFORT BALL VALVE, BUTTERFLY HANDLE, 3/4" M-F,
The F-Comfort KFCM2 is a high-quality ¾″ (G ¾) nut-nut (male–female) ball valve, designed for water and heating systems. Key features include:
Hygienic Construction: Crafted from CW617N-4MS brass, a sanitary-grade alloy with nickel-free wetted surfaces, ensuring safety for potable water systems.
Sealing & Stem Design: Utilizes durable PTFE seals for the ball and stem. It also features a gland stem, allowing for easy leak-tight adjustment with a wrench.
Butterfly Handle: Equipped with a metal butterfly (wing) handle, offering convenient, quarter-turn operation.
Performance Ratings: Rated for 20 bar (PN20) pressure and up to 100 °C operating temperature.
Certifications & Quality: Includes hygienic and technical assessments, a Gold Medal award at Poznań 2020/2021, and backed by a 5-year warranty.
Product Details
Specifications Table – KFCM2 (¾″ M–F, Butterfly Handle)
Specification | Details |
|---|---|
Model / Index | KFCM2 (F-Comfort series) |
Connection Type | ¾″ Male–Female (G ¾) |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Maximum Working Temperature | 100 °C |
Body & Ball Material | Brass CW617N-4MS (hygienic grade) |
Seals | PTFE (ball & stem) |
Nickel-Free Wetted Surfaces | Yes |
Handle Type | Metal butterfly (wing) handle |
Stem Gland (Adjustment) | Yes – for sealing maintenance |
Warranty | 5 years |
Dimensions | A = 16 mm; d = 55.5 mm; B = 52 mm; C = 38.8 mm |
Flow Coefficient (Kvs) | 13.31 m³/h |
Packaging | Individual pack: 18 pcs; Bulk pack: 90 pcs |
