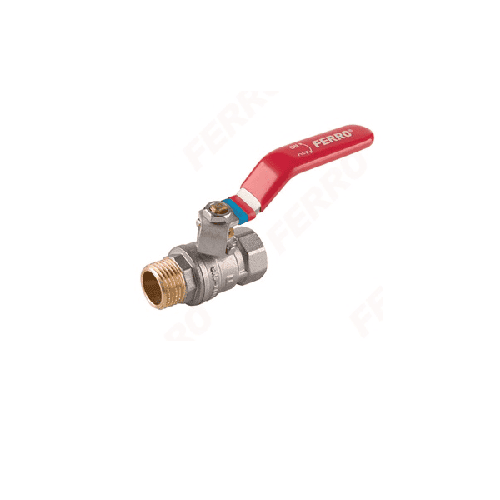

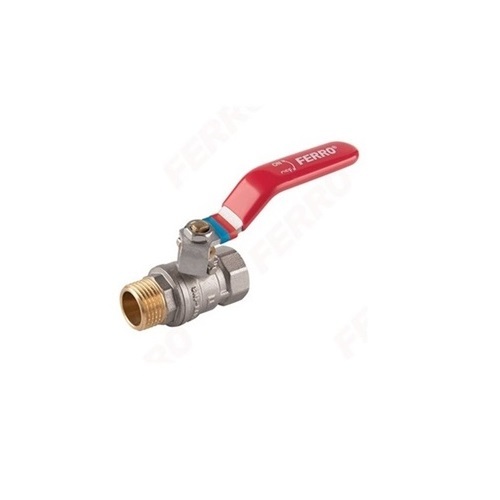

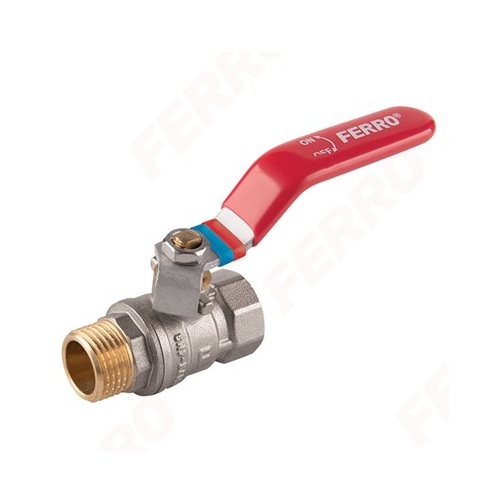

F-COMFORT BALL VALVE LEVER HANDLE G1/2" M-F
he F-Comfort KFC1 (G ½″ M–F) ball valve is engineered for water and central heating systems, offering superior hygiene and durability. It features a solid brass construction, a chrome-plated, polished ball, PTFE seals, and a sturdy metal lever handle. Importantly, all internal surfaces in contact with water are nickel-free, making it suitable for potable use. It also comes with a 5-year warranty.
Product Details
Specifications Table
Specification | Details |
|---|---|
Model / Index | KFC1 (F-Comfort series) |
Connection Type | G ½″ Male–Female (M–F) |
Nominal Pressure | 20 bar (PN20) |
Maximum Working Temperature | 100 °C |
Body & Ball Material | Brass CW617N-4MS (hygienic grade) |
Seal Materials | PTFE (ball & stem) |
Internal Finish | Chrome-plated, polished ball; nickel-free on wetted surfaces |
Handle | Solid metal lever |
Certification & Recognition | Hygienic Certificate; National Technical Assessment; Gold Medal at Poznań 2020/2021 |
Warranty | 5 years |
Dimensions & Flow (KFC1) | A = 12 mm; d = 47 mm; B = 91 mm; C = 45.2 mm; Kvs = 6.83 m³/h |
Packaging | Individual pack: 15 pcs; Bulk: 90 pcs |
