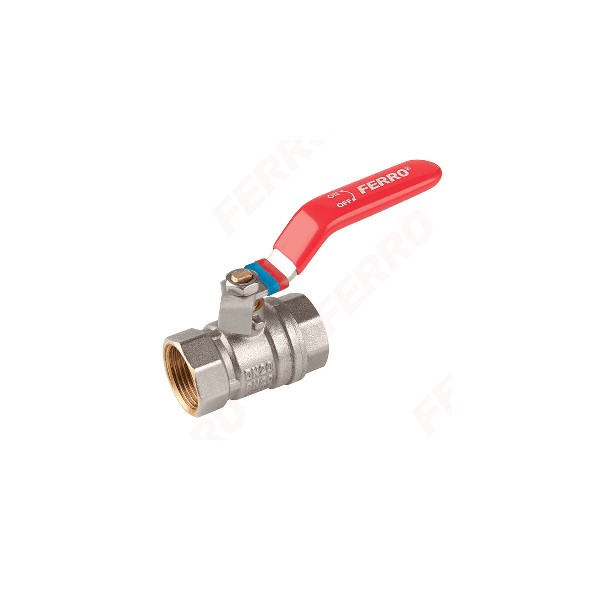

F-COMFORT BALL VALVE LEVER HANDLE G1" F-F
The F-Comfort KFC3 (1″ F–F lever ball valve) delivers a high-grade solution for potable water and heating systems. Key points include:
Safe & hygienic, thanks to nickel-free construction and PTFE seals.
High performance, rated for up to 20 bar pressure and 100 °C.
User-friendly maintenance, with adjustable stem gland and reliable lever control.
Proven quality assurance, backed by leak-testing, certification, and warranty.
Product Details
Specifications Table – F-Comfort KFC3 (1″ F–F, Lever Handle)
Specification | Details |
|---|---|
Model / Series | KFC3 (F-Comfort F–F female–female) |
Connection Type | 1″ Female × Female (F–F) |
Body Material | Brass CW617N-4MS (hygienic-grade) |
Wetted Surfaces | Nickel-free internally |
Ball Finish | Chrome-plated, polished |
Seal Material | PTFE (ball & stem) |
Handle Type | Metal lever (quarter-turn) |
Stem Gland | Yes – for seal adjustment |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Max. Working Temperature | 100 °C |
Flow Coefficient (Kvs) | 24.48 m³/h |
Approx. Dimensions | A = 21 mm; d = 63 mm; B = 113 mm; C = 59 mm |
Packaging | Individual: 10 pcs; Bulk: 40 pcs |
