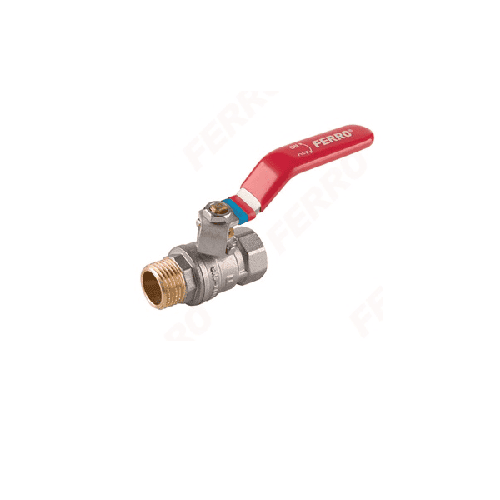

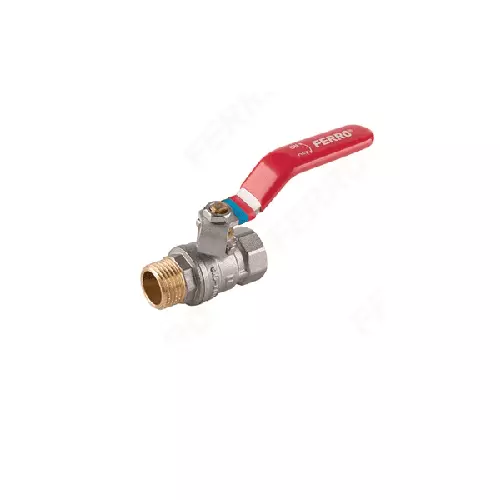

F-COMFORT BALL VALVE LEVER HANDLE G1" M-F
The F-Comfort ball valve is a high-quality brass valve designed for water systems, featuring a robust metal lever for ease of operation. It’s made with premium materials and crafted under stringent quality standards for durability and potable water safety
Product Details
Key Features & Specs
Feature | Specification / Detail |
|---|---|
Series / Model | F-Comfort — KFC series (e.g., KFC3 corresponds to G1″ size) ferrocompany.com |
Connections | G1" Male–Female (M-F) — part of the DN 25 size KFC3 variant |
Body Material | Brass (CW617N-4MS hygienic-grade), nickelfree on all surfaces in contact with water |
Ball & Seals | Chrome-plated, polished ball; PTFE (PTF) stem and ball seals |
Handle Type | Sturdy metal lever — reliable quarter-turn operation |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Max Operating Temp. | Up to 100 °C |
Media / Usage | For water supply and central heating systems; potable water-certified |
Quality / Compliance | National Technical Assessment & Hygienic Certificates (Poland), leak-tested 100% during manufacturing |
Warranty | 5 years |
Dimensional Details for G1" (KFC3)
Dimension | Value |
|---|---|
A | 21 mm |
d | 63 mm |
B | 113 mm |
C | 59 mm |
Kvs | 24.48 m³/h |
Packaging | Individual/pack: 10 pieces; Bulk: 40 pieces |
