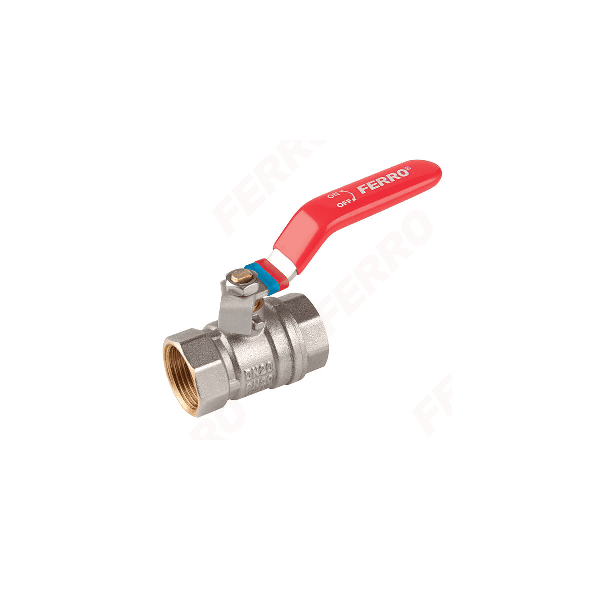

F-COMFORT BALL VALVE LEVER HANDLE G3/4" F-F
The F-Comfort KFC2 (¾″ F–F lever ball valve) stands out as a top-tier solution for residential, commercial, and heating system applications—offering:
Safe, hygienic design, thanks to nickel-free brass and PTFE sealing.
High performance with a strong pressure and temperature rating.
Easy maintenance, enabled by the robust lever handle and adjustable gland.
Trusted quality, underpinned by leak testing, certifications, industry recognition, and a 5-year warranty.
Product Details
Specifications Table – F-Comfort KFC2 (¾″ F–F Lever Handle)
Specification | Details |
|---|---|
Model / Index | KFC2 (F-Comfort series) |
Connection Type | ¾″ Female × Female (G ¾) |
Body Material | Brass (CW617N-4MS) – hygienic-grade |
Wetted Surfaces | Nickel-free internal surfaces |
Ball & Seals | Chrome-plated ball; PTFE seals |
Handle Type | Metal lever (quarter-turn) |
Stem Gland | Yes – adjustable with wrench |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Max. Working Temp. | 100 °C |
Flow Coefficient (Kvs) | 10.94 m³/h |
Dimensions | A = 16 mm, d = 55.5 mm, B = 91 mm, C = 48.5 mm Ferro Company |
Packaging | Individual: 12 pcs; Bulk: 72 pcs |
