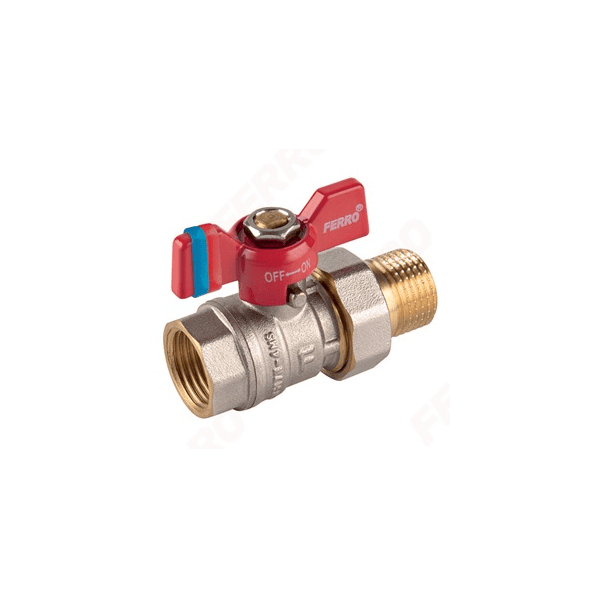

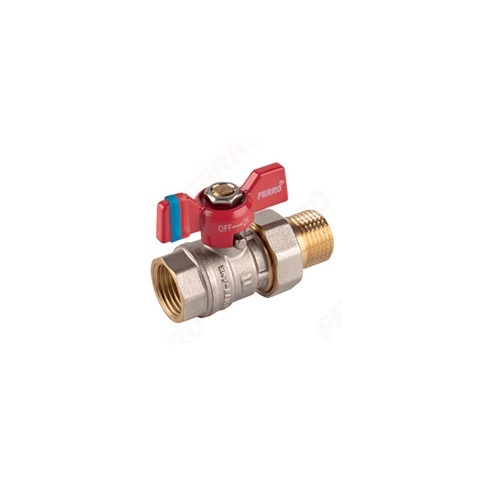

he F-Comfort KFCS1 (½″ M-F with union) is a compact ball valve featuring a butterfly-style (wing) handle and male–female union connection, ideal for installations where quick assembly or maintenance is needed. It includes:
Nickel-free interior surfaces, making it safe for potable water applications.
Brass construction (CW617N-4MS)—crafted to hygienic standards.
PTFE seals on the ball and stem for tight, reliable performance.
Gland stem design for adjustment and leak compensation.
Rated for 20 bar (PN 20) and up to 100 °C operation.
5-year warranty, underlining its durability.
€5,54 €5,64
Available Offer
Product Details
Specifications Table
Specification
Details
Model / Index
KFCS1 (F-Comfort series)
Connection Type
½″ Male–Female with union
Nominal Pressure (PN)
20 bar (2.0 MPa)
Maximum Temperature
100 °C
Body Material
Brass CW617N-4MS (hygienic grade)
Seal Material
PTFE (ball and stem)
Nickel-Free Wetted Areas
Yes
Handle Type
Butterfly (wing) handle
Stem Gland
Yes—for clearance adjustment
Warranty
5 years
Dimensions / Flow
A = 12 mm; d = 65.5 mm; B = 52 mm; C = 35.5 mm; Kvs = 6.39 m³/h
Packaging
Individual: 15 pcs; Bulk: 75 pcs
