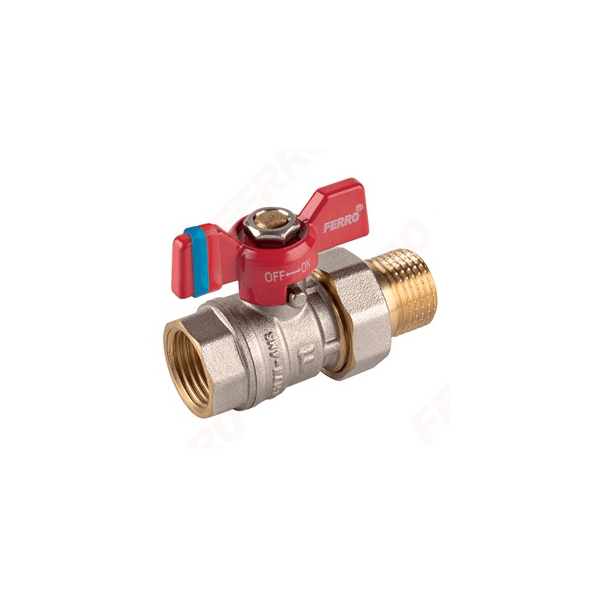

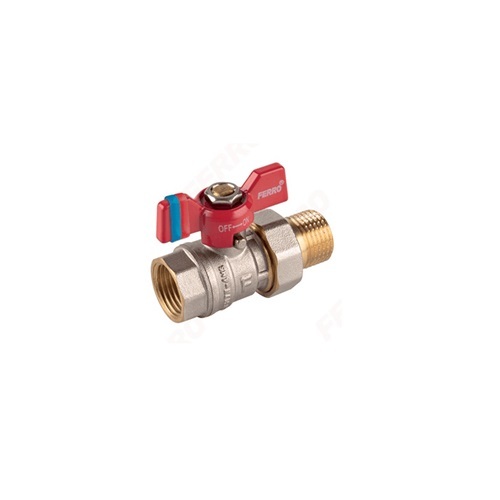

F-COMFORT BUTTERFLY VALVES WITH UNION M-F-1"
The F-Comfort butterfly valve with union (M–F)—designated as model KFCS3 in the F-Comfort lineup—is engineered for water systems, combining hygienic design with user-friendly maintenance. Its key features include:
Brass Construction: Manufactured from CW617N-4MS brass, meeting modern hygienic standards.
Union Connection: Equipped with male–female union ends for easy installation and servicing.
PTFE Seals: Ensures tight sealing and smooth operation.
Nickel-Free Wetted Parts: All internal components in contact with potable water are free of nickel, enhancing safety.
Performance Specs: Rated for a nominal pressure of 20 bar (PN20) and maximum working temperature up to 100 °C.
Durability & Assurance: Comes with a 5-year warranty, reflecting FERRO’s confidence in product longevity.
Product Details
Specifications Table (Model KFCS3 – 1″ M–F)
Specification | Details |
|---|---|
Model / Index | KFCS3 |
Connection Type | 1" Male–Female with Union |
Nominal Pressure (PN) | 20 bar |
Max. Working Temperature | 100 °C |
Body Material | Brass (CW617N-4MS), hygienic grade |
Seal Material | PTFE |
Nickel-Free Wetted Surfaces | Yes |
Handle Type | Metal butterfly handle |
Warranty | 5 years |
Dimensions & Kvs | A = 21 mm; d = 87 mm; B ≈ 67.5 mm; C = 50 mm; Kvs = 21.50 m³/h |
Packaging | Individual: 12 pcs; Bulk: 36 pcs |
