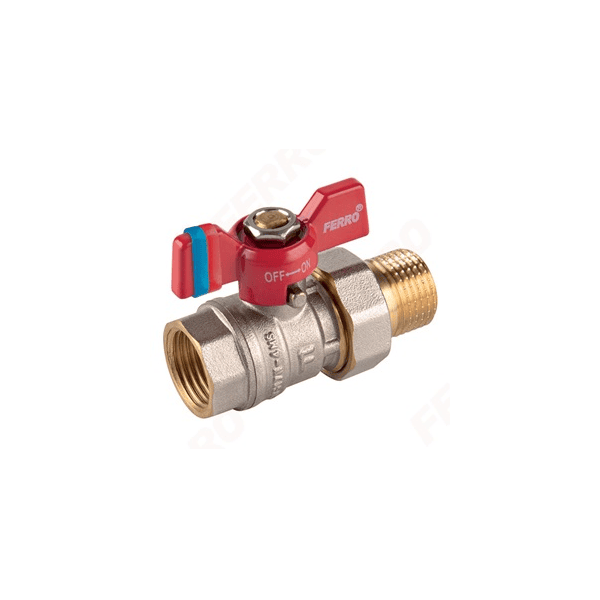

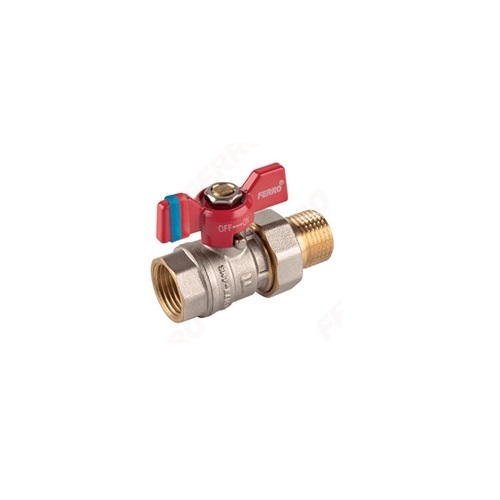

F-COMFORT BUTTERFLY VALVES WITH UNION M-F-3/4"
The F-Comfort KFCS2 (¾″ M–F with union) is part of FERRO’s hygienic F-Comfort series. Designed for water and heating systems, it offers:
Hygienic brass body (CW617N-4MS) with nickel-free wetted surfaces—ideal for potable water use.
Union connection (M–F) for easy assembly and maintenance.
PTFE seals ensuring reliable, tight sealing.
Metal butterfly handle, offering convenient, quarter-turn operation.
High operating performance: rated for 20 bar pressure and up to 100 °C.
5-year warranty, underscoring its quality and durability.
Product Details
Specifications Table – Model KFCS2 (¾″ M–F with Union)
Specification | Details |
|---|---|
Model / Index | KFCS2 (F-Comfort series) |
Connection Type | ¾″ Male–Female with union |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Maximum Working Temp. | 100 °C |
Body Material | Brass CW617N-4MS (hygienic grade) |
Seal Material | PTFE (ball & stem) |
Nickel-Free Wetted Surfaces | Yes |
Handle Type | Metal butterfly handle |
Stem Gland | Yes (enables adjustment) |
Warranty | 5 years |
Dimensions & Flow Coefficient | A = 16 mm; d = 76 mm; B = 52 mm; C = 38.8 mm; Kvs = 11.83 m³/h |
Packaging | Individual pack: 14 pcs; Bulk pack: 56 pcs |
