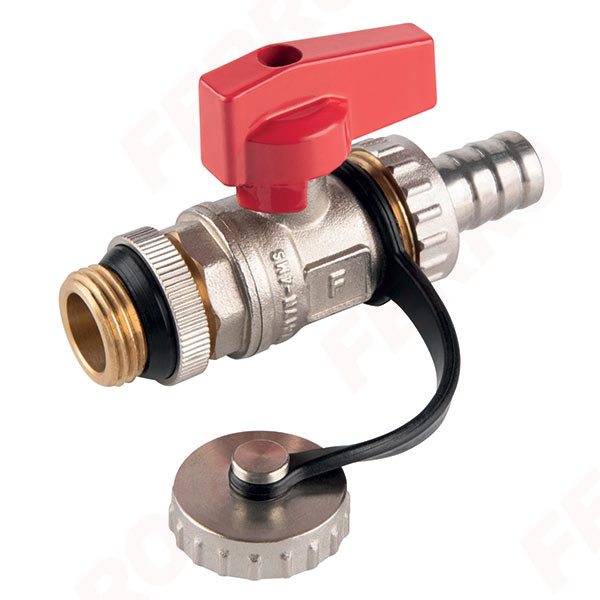

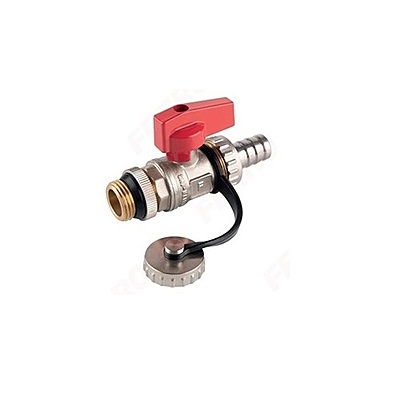

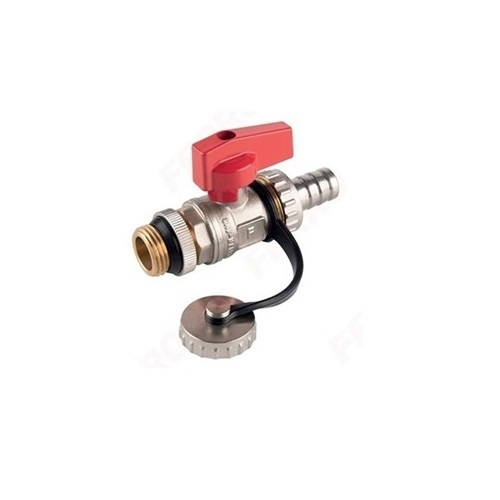

F-COMFORT DRAIN BALL VALVE WITH SEALING 1/2'' M
The ZSSN1 F-Comfort drain ball valve is a high-quality, hygienic solution perfectly suited for draining tasks in potable water and heating systems. Its key advantages include:
Safe & Hygienic: Nickel-free and hygienic brass ensures safe contact with drinking water.
Secure Sealing: PTFE seals and dual O-ring design reduce risk of leaks.
User-Friendly: Butterfly handle plus included hose connector and plug make installation and use straightforward.
Reliably Certified: Built to withstand 10 bar and 100 °C, backed by a 5-year warranty and industry
Product Details
Specifications Table – Model ZSSN1 (½″ M Drain Ball Valve)
Specification | Details |
|---|---|
Model / Index | ZSSN1 (F-Comfort series) |
Connection Type | ½″ Male (M) with sealing and drain |
Material (Body & Ball) | Brass CW617N-4MS (hygienic standard) |
Seals | PTFE ball/stem seals; double O-ring stem sealing |
Handle Type | Metal butterfly (cap) handle |
Nominal Pressure | 10 bar (PN10) |
Maximum Operating Temp. | 100 °C |
Nickel-Free Wetted Surfaces | Yes |
Hose Connector & Plug | Included |
Warranty | 5 years |
Approximate Dimensions (for ZSSN1) | A: 9 mm; B: 70.5 mm; C: 32.3 mm; D: 32 mm; E: 15 mm; F: G¾; Kvs ≈ 3.54 m³/h |
Packaging | Individual: 10 pcs; Bulk: 120 pcs |
Award / Recognition | Gold Medal at Poznań 2020/2021 Fair (F-Comfort series) |
Note: The Kvs value, which reflects flow capacity, is approximately 3.54 m³/h
