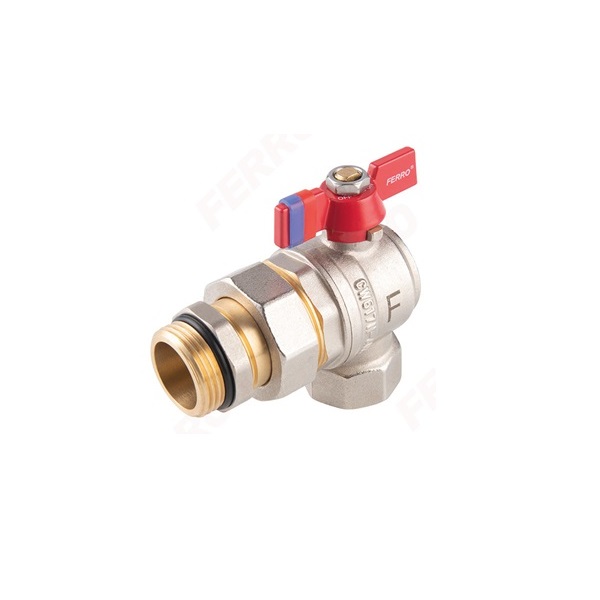

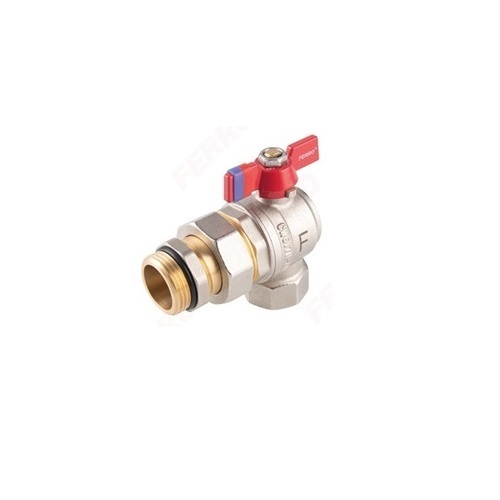

F-POWER ANGLE BALL VALVE WITH UNION 1'' M-F
The F-Power KFPS3A is a high-quality 1″ angle-style ball valve with union, designed for water, glycol (up to 50%), and compressed air systems. It boasts a hygienic brass construction and several advanced design features:
Hygienic Materials: Built with CW617N-4MS brass, compliant with the latest hygiene standards, and nickel-free on all wetted surfaces—ideal for potable water applications. Ferro Company
Union Connection: Features male–female union ends for simplified installation and maintenance.
Sealing & Maintenance: Equipped with PTFE seals, plus a gland (packing) for adjustable stem sealing, and includes an extra sealing nut on the mounting thread.
Handle Type: Solid butterfly (winged) handle for easy quarter-turn operation.
Performance Ratings:
Nominal Pressure: 30 bar (PN 30)
Max. Operating Temperature: 120 °C
Warranty: Offers a robust 10-year warranty, underscoring its reliability and durability
Product Details
Specifications Table — Model KFPS3A (1″ Angle Ball Valve with Union)
Specification | Details |
|---|---|
Model / Index | KFPS3A (F-Power series) |
Connection Type | 1″ Male–Female with union |
Suitable Media | Water, glycol (up to 50%), compressed air |
Body Material | Brass CW617N-4MS, hygienic standard |
Wetted Surfaces | Nickel-free |
Sealing Material | PTFE |
Additional Sealing Features | Gland for stem packing, extra nut with seal on mounting thread |
Handle Type | Butterfly (winged) handle |
Nominal Pressure (PN) | 30 bar (3.0 MPa) |
Maximum Working Temperature | 120 °C |
Warranty | 10 years |
Flow Dimensions & Kvs | DN 25 (G 1″); A = 25 mm; d = 22 mm; B = 99 mm; C = 12.5 mm; Kvs = 10.93 m³/h |
Individual Packaging Quantity | 2 pieces |
Bulk Packaging Quantity | 20 pieces |
