Ferro

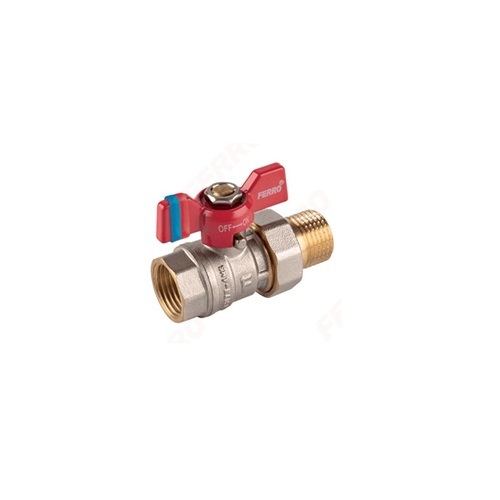

F-POWER BUTTERFLY VALVES WITH UNION M-F-1"
F-POWER Butterfly Valve with Union M-F-1" is a full-bore brass ball valve with male-female threaded connection, union fitting, and butterfly handle for reliable shut-off in water, glycol, and compressed air installations. It features PTFE seals, PN30 pressure rating, nickel-free wetted parts, and durable CW617N-4MS brass construction.
€19,88
€19,89
Choose Qty:
Product Details
| Specification | Value |
|---|---|
| Product line | F-POWER |
| Product code | KFPS3 |
| Product type | Ball valve with union |
| Connection type | Female-Male with union |
| Connection size | 1" |
| Thread | G1 |
| DN | 25 |
| Full bore | Yes |
| Handle type | Butterfly |
| Body material | Brass |
| Ball material | Brass |
| Brass standard | CW617N-4MS |
| Seal material | PTFE |
| Media | Water, glycol 50%, compressed air |
| Nominal pressure | PN30 / 30 bar |
| Maximum working temperature | 120°C |
| Minimum working temperature | -30°C |
| Nickel-free wetted parts | Yes |
| With gland | Yes |
| Length (B) | 108 mm |
| Dimension C | 16.5 mm |
| Dimension D | 14.5 mm |
| Dimension E | 47.4 mm |
| Dimension F | 65 mm |
| Kvs | 22.43 m³/h |
| Warranty | 10 years |
