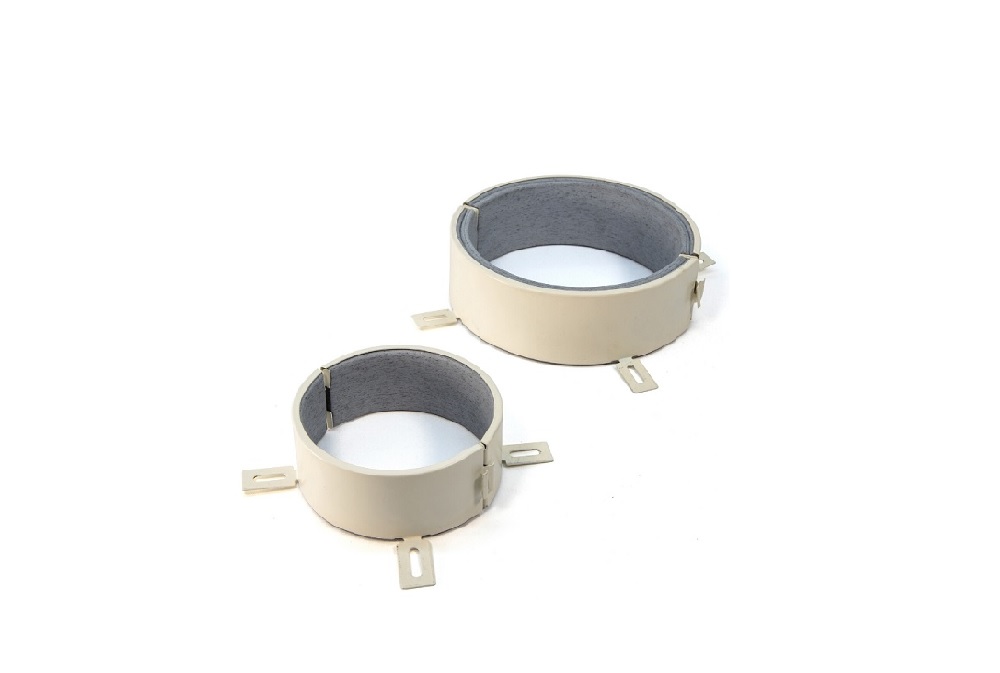

FIRE PROTECTION PIPE COLLAR-110MM
The Fire Protection Pipe Collar OL110 is a certified intumescent fire-stopping collar designed for 110mm plastic pipe penetrations. In the event of fire, the collar expands to seal the pipe and prevent the spread of flames, smoke, and hot gases through walls and floors. Suitable for PVC, HDPE, PP, and other combustible piping used in drainage and service installations. Ideal for commercial, residential, and industrial fire-rated constructions.
SKU - FCOL110
€29,19
€29,20
In stock:
104
Choose Qty:
Product Details
| Parameter | Value |
|---|---|
| Product Name | Fire Protection Pipe Collar OL110 |
| Size | 110 mm |
| Type | Intumescent pipe collar |
| Application | Fire-rated walls & floor penetrations |
| Compatible Pipe Materials | PVC, HDPE, PP, ABS |
| Fire Resistance Rating | Up to 120–240 minutes (model/brand dependent) |
| Activation | Expands under high temperature to seal pipe |
| Casing Material | Steel housing with intumescent liner |
| Installation Method | Mechanical fixing around pipe using anchors |
| Use Areas | Drainage pipes, service risers, utility shafts |
| Compliance | EN 1366-3 (model dependent) |
| Packaging | Single collar with mounting brackets |
