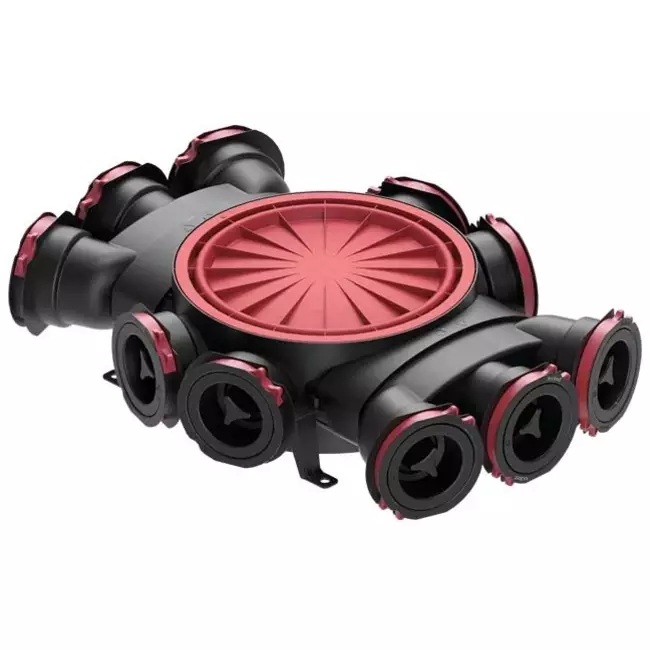

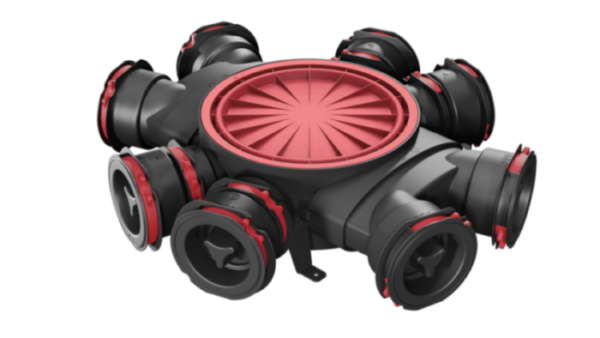

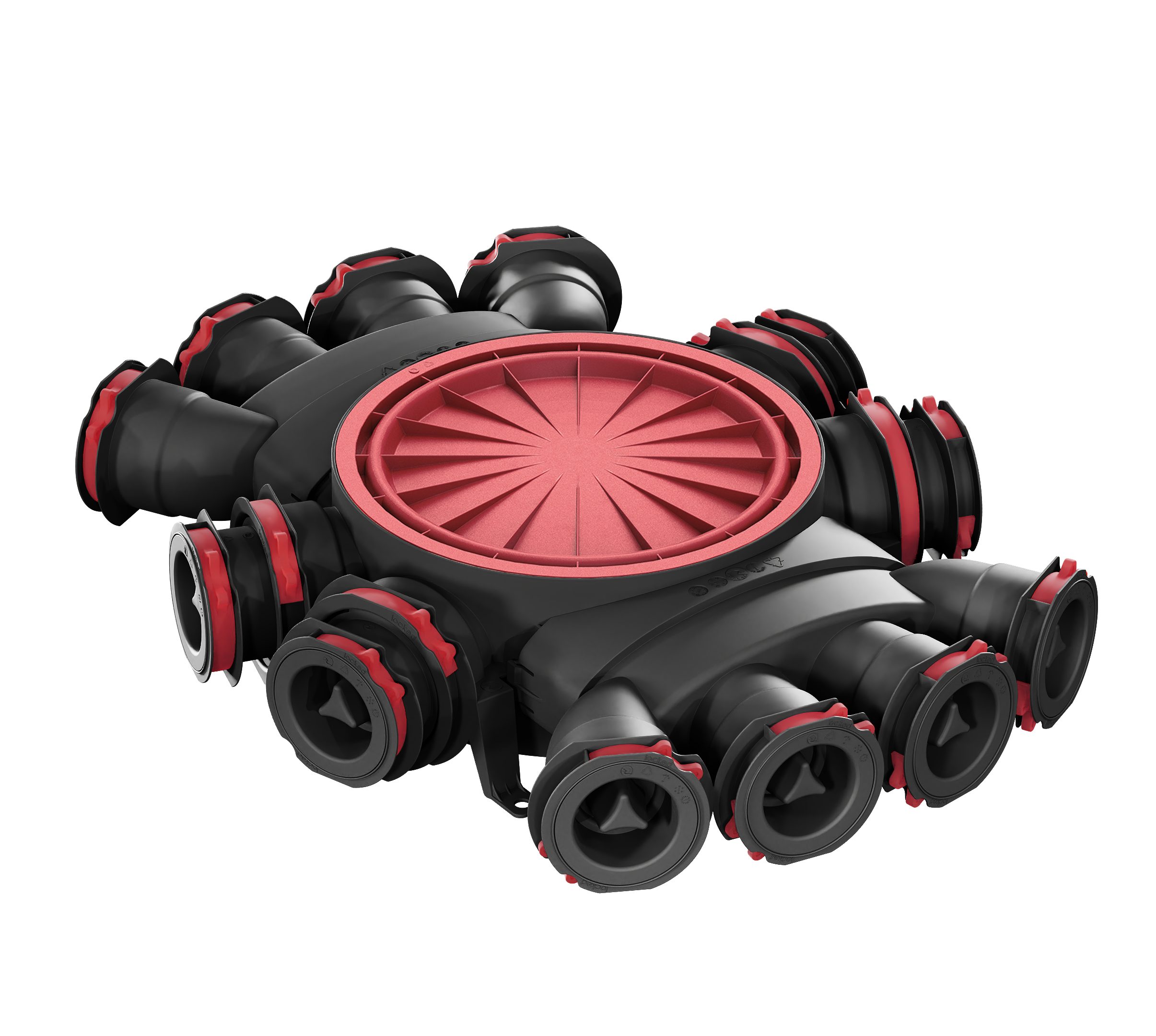

HEATPEX ARIA CONNECT DISTRIBUTION BOX

Technical Specifications:

• Brand: HEATPEX

• Product Name: ARIA Connect Distribution Box

• System Compatibility: HEATPEX ARIA flexible duct system

• Material: High-quality polypropylene (PP), anti-static and antibacterial

• Inlet Diameter: Ø125 mm or Ø160 mm (depending on model)

• Outlet Ports:

  • 6, 8, 10, or 12 outlets (model dependent)

  • For Ø75 mm or Ø90 mm ducts

• Connection Type: Push-fit system with integrated rubber gaskets

• Airtightness Class: Class D (high-performance)

• Temperature Range: -25°C to +60°C

• Installation: Wall, ceiling, or floor-mounted; compact design for tight spaces

• Features:

  • Fast, tool-free installation

  • Hygienic and easy to clean

  • Lightweight and impact-resistant

  • Ensures even airflow distribution

  • Compatible with all HEATPEX ARIA connectors and dampers

• Applications:

  • Residential HRV/ERV systems

  • Passive and low-energy homes

  • Centralized ventilation for new builds or renovations
