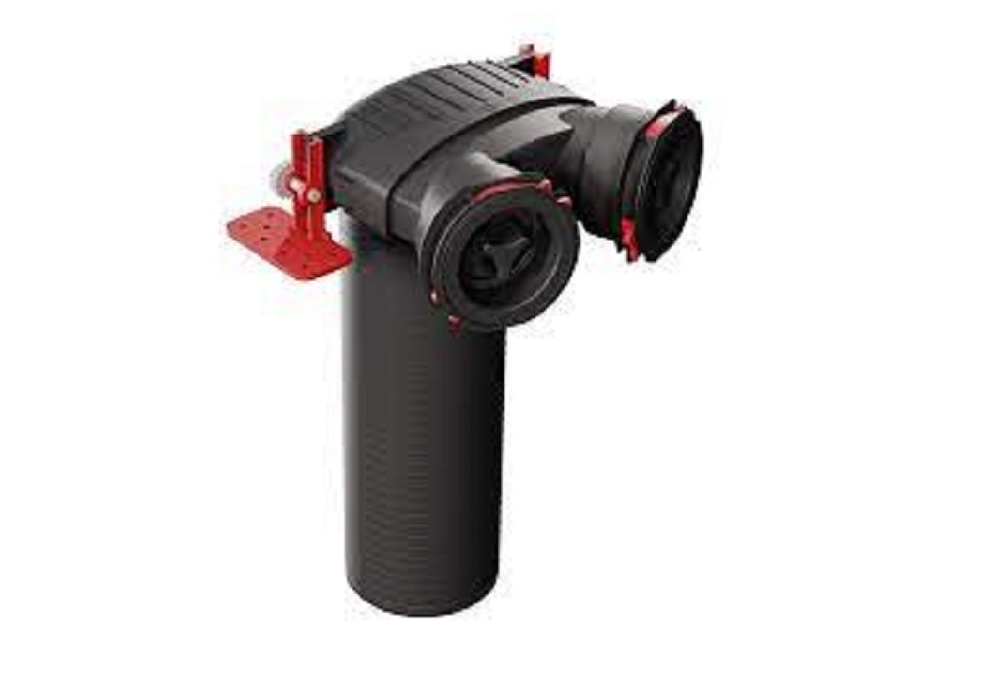

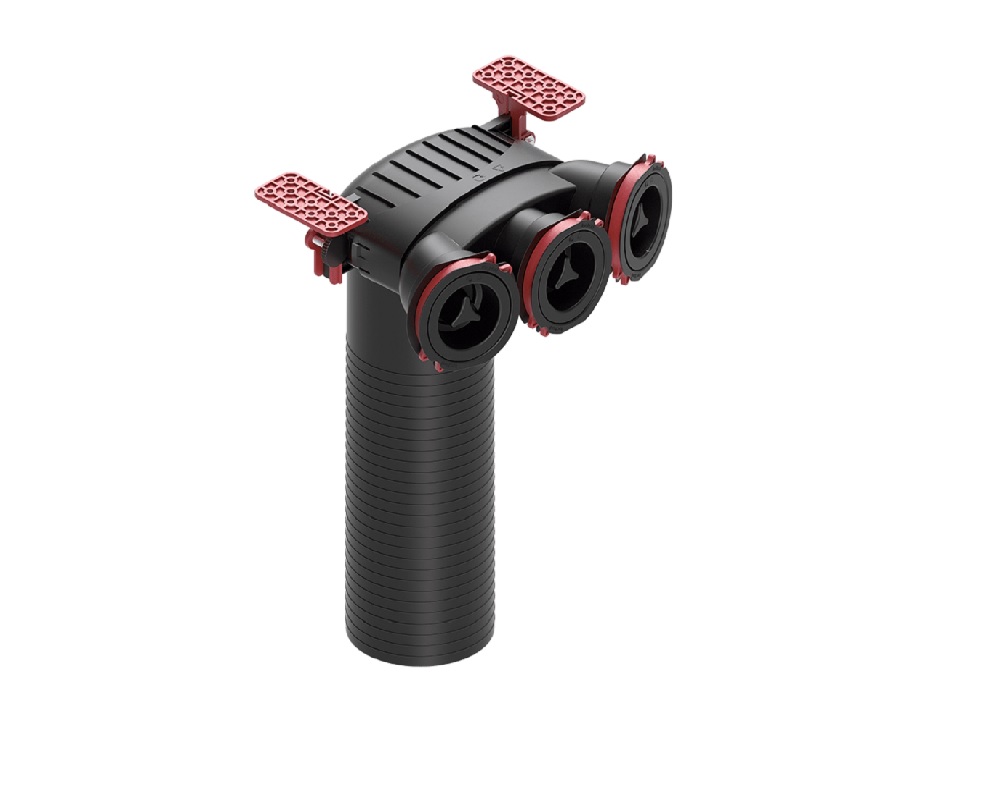

HEATPEX-ARIA CONNECT PLENUM BOX

Technical Specifications:

• Brand: HEATPEX

• Product Type: Air Distribution Plenum Box

• System Compatibility: HEATPEX ARIA ventilation system

• Material: High-quality, anti-static, antimicrobial polypropylene (PP)

• Inlet Diameter: Ø125 mm or Ø160 mm (depending on model)

• Outlet Ports: 4 to 12 ports for Ø75 mm or Ø90 mm ducts (model dependent)

• Connection Type: Push-fit with click-lock mechanism

• Seal: Integrated rubber gaskets for airtight, leak-free connection

• Installation: Wall, ceiling, or floor-mounted

• Temperature Range: -25°C to +60°C

• Features:

  • Lightweight and compact

  • Tool-free assembly

  • High airtightness (Class D)

  • Bacteriostatic and easy to clean

  • Reduces installation time significantly

• Applications:

  • Residential and commercial ventilation

  • Heat recovery ventilation (HRV) systems

  • New builds and energy-efficient retrofits
