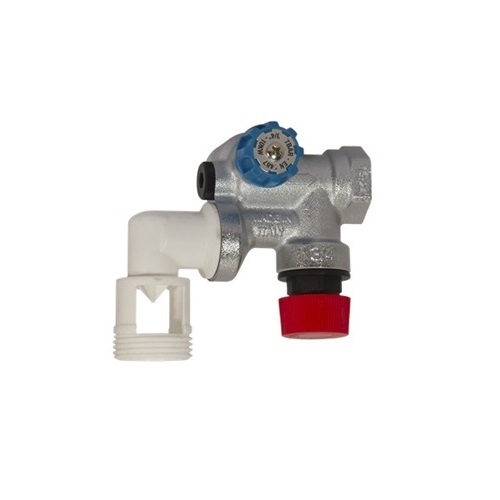

HORIZONTAL SAFETY GROUP 3/4'' 7BAR
The Horizontal Safety Group 3/4" 7 bar is a compact, pre-assembled protection unit designed for domestic and commercial hot water storage tanks and small heating circuits. It integrates all key safety components—pressure relief valve, manometer, non-return valve, and shut-off valve—into a single horizontal module. Engineered for reliability and easy installation, it ensures system overpressure protection, backflow prevention, and simple maintenance access.
SKU - PLCOHSGU34
€28,22
€28,23
In stock:
16
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Name | Horizontal Safety Group |
| Connection Size | 3/4" |
| Pressure Relief Valve | 7 bar calibrated safety valve |
| Configuration | Horizontal mounting |
| Components Included | Safety valve, pressure gauge, non-return valve, isolating valve |
| Application | Domestic hot water tanks, small heating circuits |
| Body Material | Brass body with corrosion-resistant components |
| Gauge Range | Typically 0–10 bar |
| Temperature Rating | Suitable for hot water systems up to ~95°C |
| Standards | CE-certified (manufacturer dependent) |
| Installation | Direct connection to storage tank inlet or distribution line |
