S&P
IN LINE TD SILENT-250/100 2 SPEED (220-240V50HZ)

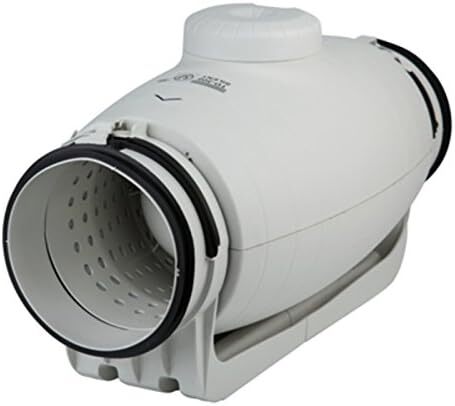

IN LINE TD SILENT-250/100 2 SPEED (220-240V 50HZ) is an ultra-quiet in-line mixed flow duct fan designed for 100 mm circular ducting. It features a 2-speed motor, low-profile body, sound-absorbing insulation, rubber-sealed connections, and a removable motor-body assembly for easier maintenance in installations where low noise is important.
€201,27
€201,28
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Name | IN LINE TD SILENT-250/100 2 SPEED |
| Series | TD-SILENT |
| Fan Type | In-line mixed flow duct fan |
| Duct Diameter | 100 mm |
| Speeds | 2 speed |
| Speed 1 | 1680 rpm |
| Speed 2 | 2210 rpm |
| Max Airflow | 200 / 250 m³/h |
| Absorbed Power | 21 / 27 W |
| Absorbed Current | 0.10 / 0.12 A |
| Sound Pressure Level | 20 / 25 dB(A) |
| Voltage / Frequency | 230V / 50Hz |
| Protection Rating | IP44 |
| Motor Class | Class B |
| Bearings | Ball bearings |
| Thermal Protection | Safety thermal overload protection |
| Working Temperature | -20°C to +40°C |
| Weight | 5.4 kg |
| Dimensions (A / ØB / C / ØD / E / F / G / H) | 575 / 97 / 252 / 204 / 100 / 250 / 83 / 121 mm |
