IN LINE TD TIMER-250/100 SILENT T 230-240V50/60Hz

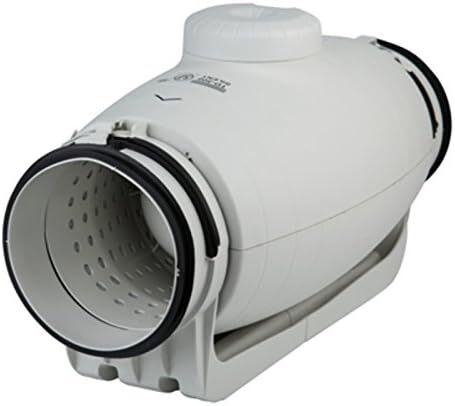

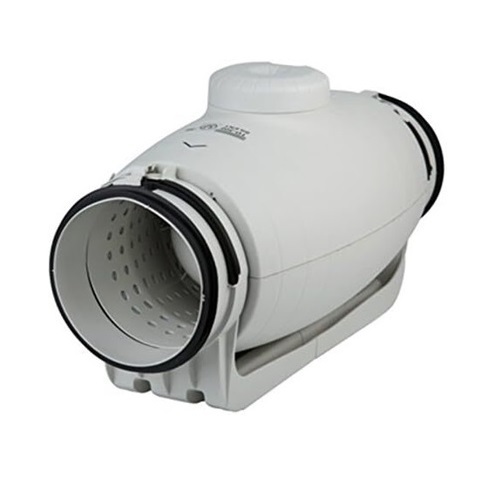

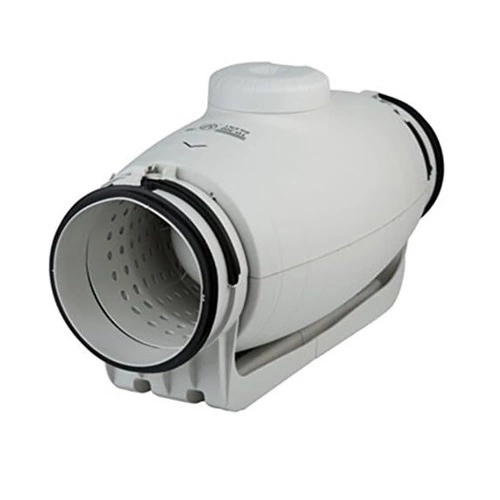

IN LINE TD TIMER-250/100 SILENT T is an ultra-quiet in-line mixed flow duct fan for 100 mm ducting, designed for installations where low noise is important. This timer version includes an adjustable run-on timer from 1 to 30 minutes, a low-profile casing, rubber-sealed connections to help reduce vibration, and a removable motor-body assembly for easier maintenance.
€237,01
€237,02
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Name | IN LINE TD TIMER-250/100 SILENT T |
| Series | TD-SILENT-T |
| Fan Type | In-line mixed flow duct fan |
| Duct Diameter | 100 mm |
| Timer Function | Adjustable run-on timer, 1 to 30 minutes |
| Speed | 2140 rpm |
| Maximum Airflow | 250 m³/h |
| Maximum Absorbed Power | 28 W |
| Maximum Absorbed Current | 0.12 A |
| Sound Pressure Level | 25 dB(A) |
| Operating Temperature | -20°C to +40°C |
| Weight | 5.4 kg |
| Dimensions (A / ØB / C / ØD / E / F / G / H) | 575 / 97 / 252 / 204 / 100 / 250 / 83 / 121 mm |
| Installation Features | Low-profile body, rubber seals, detachable motor-body assembly, rotatable connection box |
| Speed Control | Not suitable for speed control |
| Product Code | 5211364500 |
| Electrical Supply | Official S&P price list shows 1Ph 230V / 50Hz for TD-250/100 SILENT T |
