IN LINE TD TIMER-350/125 SILENT T 230-240V50/60Hz

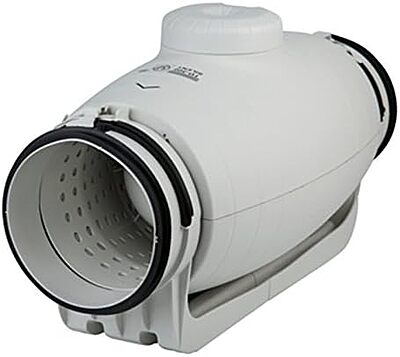

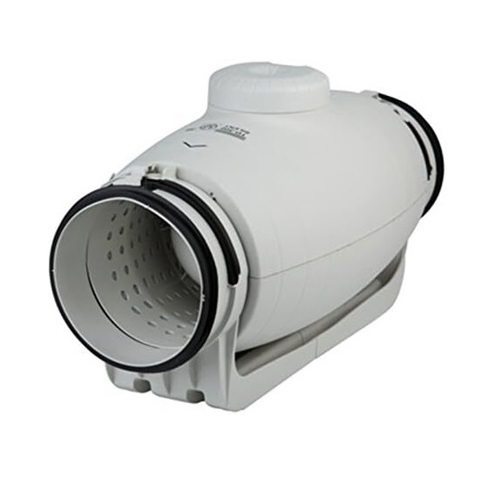

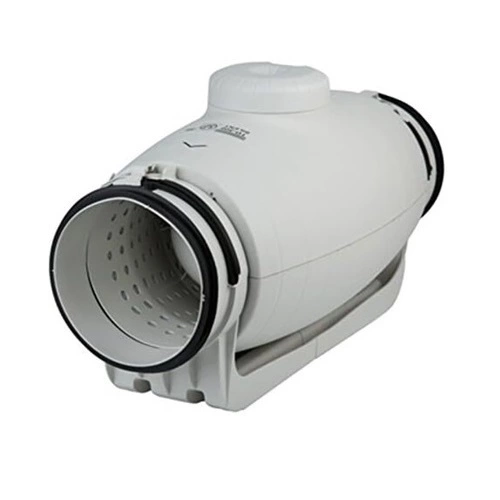

IN LINE TD TIMER-350/125 SILENT T 230-240V50/60Hz is an ultra-quiet in-line mixed flow duct fan for 125 mm ducting, designed for low-noise ventilation in residential and commercial applications. It features an adjustable run-on timer from 1 to 30 minutes, sound-absorbing insulation, rubber-sealed connections, and a detachable motor-body assembly for easier maintenance.
€263,34
€263,35
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Name | IN LINE TD TIMER-350/125 SILENT T |
| Series | TD-SILENT-T |
| Fan Type | In-line mixed flow duct fan |
| Duct Diameter | 125 mm |
| Timer Function | Adjustable run-on timer, 1–30 minutes |
| Speed | 2050 rpm |
| Maximum Airflow | 330 m³/h |
| Maximum Absorbed Power | 26 W |
| Maximum Absorbed Current | 0.11 A |
| Sound Pressure Level | 23 dB(A) |
| Protection Rating | IP44 |
| Motor Class | Class B |
| Bearings | Ball bearings |
| Thermal Protection | Safety thermal overload protection |
| Working Temperature | -20°C to +40°C |
| Weight | 5 kg |
| Dimensions (A / ØB / C / ØD / E / F / G / H) | 462 / 123 / 252 / 204 / 100 / 250 / 83 / 121 mm |
| Product Code | 5211364600 |
| Official S&P Supply Listing | 1Ph 230V / 50Hz |
