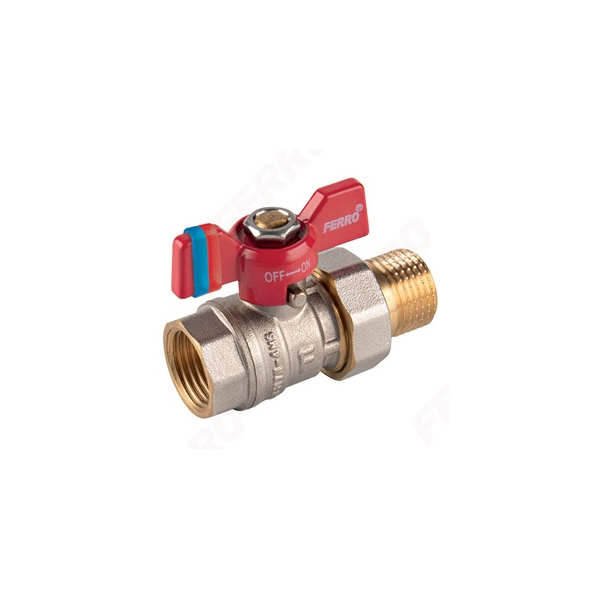

F-COMFORT BUTTERFLY VALVES WITH UNION M-F-1/2"
he F-Comfort KFCS1 (½″ M-F with union) is a compact ball valve featuring a butterfly-style (wing) handle and male–female union connection, ideal for installations where quick assembly or maintenance is needed. It includes:
Nickel-free interior surfaces, making it safe for potable water applications.
Brass construction (CW617N-4MS)—crafted to hygienic standards.
PTFE seals on the ball and stem for tight, reliable performance.
Gland stem design for adjustment and leak compensation.
Rated for 20 bar (PN 20) and up to 100 °C operation.
5-year warranty, underlining its durability.
Product Details
Specifications Table
Specification | Details |
|---|---|
Model / Index | KFCS1 (F-Comfort series) |
Connection Type | ½″ Male–Female with union |
Nominal Pressure (PN) | 20 bar (2.0 MPa) |
Maximum Temperature | 100 °C |
Body Material | Brass CW617N-4MS (hygienic grade) |
Seal Material | PTFE (ball and stem) |
Nickel-Free Wetted Areas | Yes |
Handle Type | Butterfly (wing) handle |
Stem Gland | Yes—for clearance adjustment |
Warranty | 5 years |
Dimensions / Flow | A = 12 mm; d = 65.5 mm; B = 52 mm; C = 35.5 mm; Kvs = 6.39 m³/h |
Packaging | Individual: 15 pcs; Bulk: 75 pcs |
