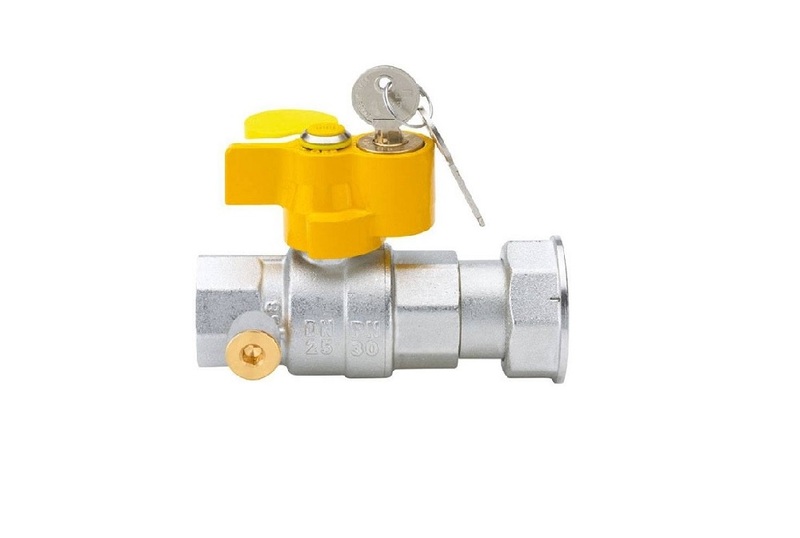

LPG-STRAIGHT GAS VALVE/FEMALE-DN20 WITH SWITCH KEY
The LPG Straight Gas Valve DN20 (Female) with Switch Key is a secure inline shutoff valve designed for controlled and tamper-resistant operation in LPG installations. Featuring a detachable switch key, it allows authorized personnel only to open or close the gas flow, enhancing safety in commercial kitchens, mechanical rooms, and industrial environments. Built from high-quality brass with excellent sealing performance, it ensures reliable and long-term operation under continuous use.
Non-returnable
SKU - GACOGVDN20FK.06
€16,12
€16,13
In stock:
15
Choose Qty:
Product Details
| Parameter | Value |
|---|---|
| Type | Straight Inline LPG Gas Valve with Key-Operated Mechanism |
| Nominal Diameter | DN20 (≈ 3/4") |
| Connection Type | Female × Female |
| Key Operation | Removable switch key for secure access |
| Gas Type | LPG / Propane / Butane |
| Body Material | Heavy-duty brass (optional nickel plating depending on model) |
| Working Pressure | Suitable for standard LPG distribution pressures |
| Operation | Quarter-turn shutoff via key |
| Sealing Material | NBR / FKM gas-compatible elastomer |
| Temperature Range | –10°C to +60°C |
| Applications | Commercial kitchens, boiler rooms, industrial LPG networks, secure gas isolation points |
| Compliance | CE compliant / EN gas installation compatible |
