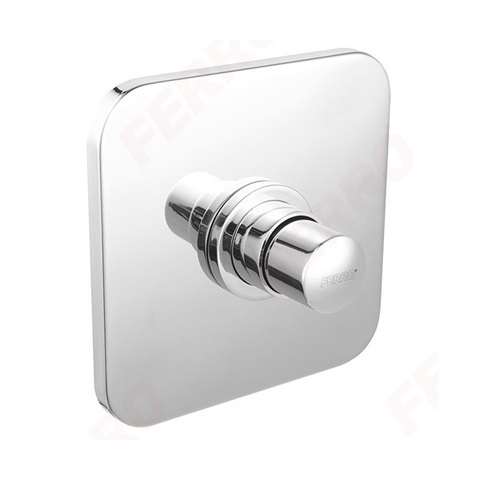

PRESTIGE PRO SQ-BUILT IN SHOWER VALVE WITH TIME FLOW CONTROL
The FERRO Z503SQ (Presstige Pro series) is a concealed timer shower valve designed for in-wall installation. It features factory-preset time flow (~ 30 s) adjustable within 25-35 s, minimum flow of ~11 L/min at 3 bar, anti-vandal system and G½″ connections — ideal for high-use/wash-down environments in hotels, public installations or professional projects.
SKU - FDMZ503SQ
€75,03
€75,04
In stock:
0
Choose Qty:
Product Details
| Feature | Specification |
|---|---|
| Model | Z503SQ (Ferro Company) |
| Series | Presstige Pro – concealed timer shower valve (Ferro Company) |
| Factory Time Flow Setting | 30 seconds at 0.3 MPa (3 bar) (Ferro Company) |
| Adjustable Time Flow | 25 - 35 seconds at 3 bar |
| Minimum Water Flow Rate | 11 L/min at dynamic pressure of 0.3 MPa (3 bar) (Ferro Company) |
| Maximum Water Temperature | 90 °C (Ferro Company) |
| Recommended Hot Water Temperature | < 65 °C (Ferro Company) |
| Recommended Dynamic Pressure Range | 0.1 – 0.5 MPa (1 – 5 bar) (Ferro Company) |
| Maximum Static Pressure | 1 MPa (10 bar) (Ferro Company) |
| Water Inlet Connections | 2 × G ½″ Male Thread (Ferro Company) |
| Anti-Vandal System | Yes — securing rosette to prevent unauthorised removal |
Review before purchasing.
- Pre-Order ItemDelivery within 21 days
