Salus

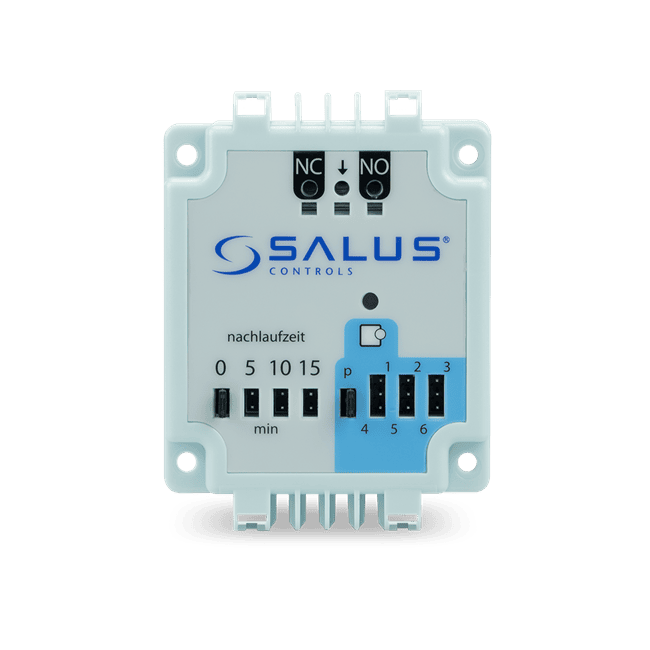

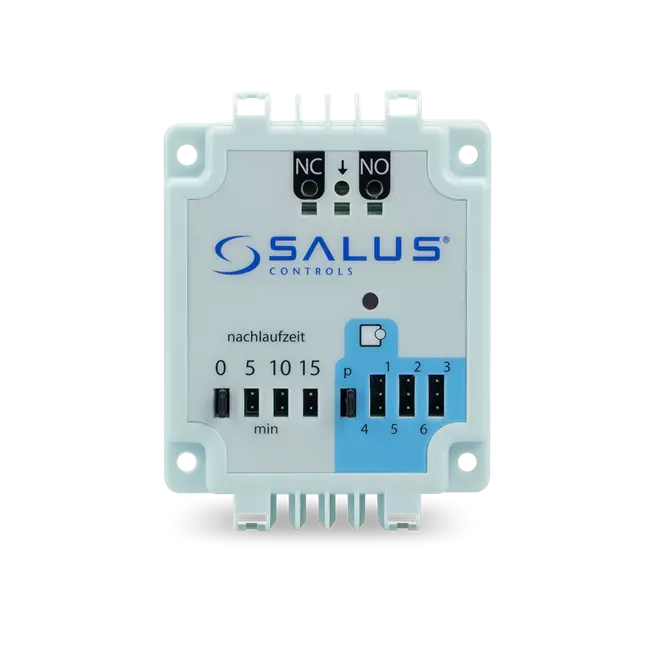

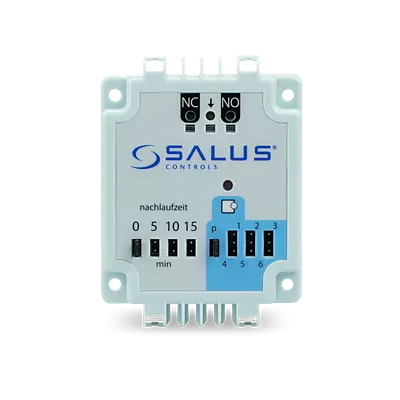

SALUS-PL06
The SALUS-PL06 is a pump or boiler control logic module designed to expand the functionality of the SALUS KL06 wiring centre. It provides control of a circulation pump or boiler in zoned heating or underfloor heating systems using volt-free relay contacts, improving system operation and efficiency.
Non-returnable
€30,49
€30,50
Choose Qty:
Product Details
| Specification | Description |
|---|---|
| Product Type | Control / Logic Module |
| Model | SALUS-PL06 |
| Function | Pump or boiler switching control |
| Compatibility | Works with SALUS KL06 wiring centre |
| Power Supply | 230 V AC (via KL06 centre) |
| Output | Volt-free NC/COM/NO relay contacts |
| Max Switching Load | 5 A (2 A) |
| Dimensions (approx.) | 60 × 80 × 20 mm |
| Applications | Underfloor heating, zoned heating systems |
| Adjustable Features | Over-run time and zone selection via jumpers |
| Installation | DIN-rail / terminal strip connection |
| Warranty | Manufacturer standard warranty |
