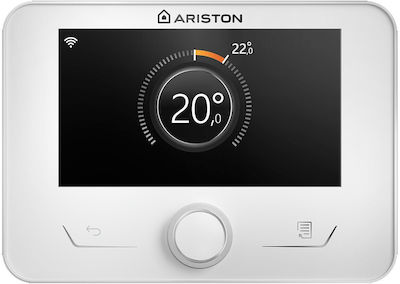

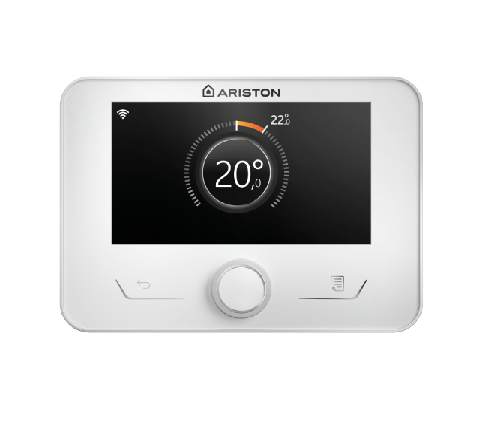

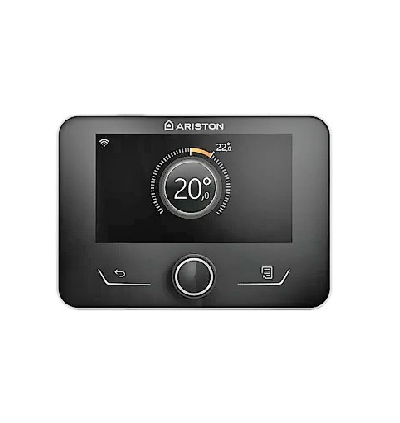

SENSYS NET HD

📐 Dimensions & Build

• Dimensions: ~136 × 97 × 26 mm (wall‑mounted wired version)

• Weight: Approximately 400 g

⚙️ Power & Connectivity

• Power (wired): BUS BridgeNet® supply 8–24 V, ≤ 35 mA

• Wireless gateway: Includes Wi‑Fi or optional GPRS module

• Communication protocols: BUS BridgeNet for system integration; RF band 868 MHz (wireless version)

• Ariston NET app compatible, plus voice-control integrations (Alexa, Google Home)

🌡️ Controls & Display

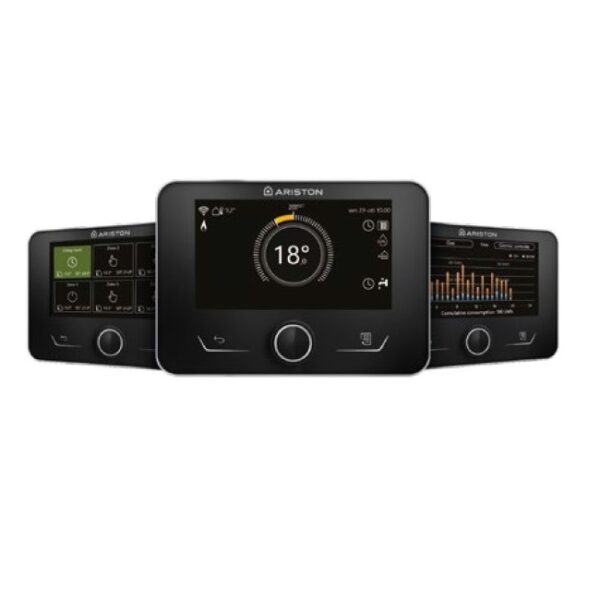

• Display: 4.3″ colour TFT LCD, backlit

• Interface: Central control knob plus touch buttons

• Temperature range: 0–50 °C, ±0.5 °C precision

• Programming: 5+2 or 4 daily time slots, up to 6 temperature levels per day

• Zones: Configurable for up to 6 heating zones

🔧 Functions & Features

• Modulating Fuzzy‑logic algorithm for precise temperature control

• Humidity sensor (humidistat) integrated

• Energy monitoring: On-screen consumption graphs and CO₂ emissions reports

• Advanced control: Manages space heating, DHW, multi-sources including renewables

🛡️ Durability & Warranty

• Operating range: 0–50 °C ambient, 20–80% RH

• Storage limits: –10 to 45 °C

• Warranty: 2 years
