Ruck ventilatoren GmbH
SMOKE BOX FAN MPC 315 D2 F4 T40

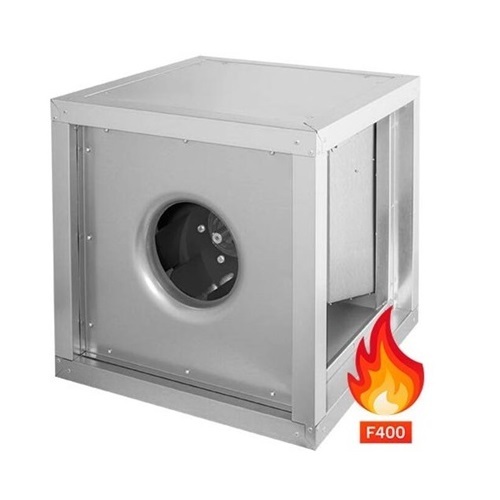

High-performance Ruck MPC 315 D4 F4 T40 smoke box fan, designed for certified smoke extraction and high-demand ventilation systems. Built with an insulated galvanized steel housing and equipped with an IE3 high-efficiency motor, this centrifugal fan is F400-certified according to DIN EN 12101-3, ensuring safe operation at 400°C for 120 minutes and continuous use at 200°C. Ideal for commercial, industrial, and fire-rated ventilation networks.
SKU - MPC315D2F4T40
€1.965,68
€1.965,69
In stock:
0
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Brand | Ruck |
| Model | MPC 315 D4 F4 T40 |
| Product Type | Insulated centrifugal smoke extraction fan |
| Certification | F400 – DIN EN 12101-3 (400°C / 120 min) |
| Continuous Operation | 200°C |
| Impeller Diameter | Ø315 mm |
| Motor Type | IE3 high-efficiency motor |
| Voltage / Frequency | 400V – 3 phase – 50Hz |
| Motor Class | D4 |
| Housing Material | Galvanized steel, insulated |
| Fan Type | Centrifugal smoke extraction fan |
| Temperature Class | F400 / T40 |
| Application | Smoke extraction, emergency ventilation, industrial HVAC |
| Features | High temperature resistance, robust housing, energy-efficient motor, fire-certified construction |
Review before purchasing.
- Pre-Order ItemDelivery within 21 days
