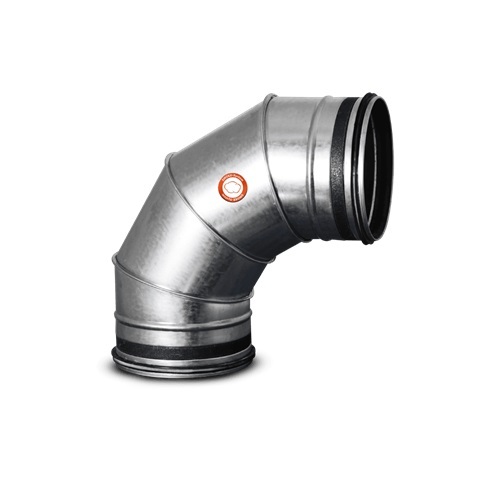

SMOKE EXTRACTION SEGMENTED BEND 90-D100MM
High-performance segmented 90° smoke extraction bend Ø100 mm, certified to E600 120 (ho) S1500 single for use in single-compartment and dual-function smoke extraction systems. Designed for high-temperature operation up to 600°C for 120 minutes, offering exceptional airtightness (Class D per PN-EN 12237) and stable airflow under extreme conditions. Suitable for commercial, industrial, and fire-rated HVAC installations.
SKU - VESBE90100
€34,16
€34,17
In stock:
36
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Product Type | Smoke Extraction Segmented Bend |
| Bend Angle | 90° |
| Diameter | Ø100 mm |
| Fire Classification | E600 120 (ho) S1500 single |
| Temperature Resistance | Up to 600°C for 120 minutes |
| Airtightness | Class D (PN-EN 12237) |
| Application Type | Single-compartment smoke extraction & combined systems |
| Pressure / Velocity Class | S1500 – suitable for high-velocity smoke extraction |
| Orientation | (ho) – horizontal installation |
| Material | Galvanized steel (fire-rated construction) |
| Construction Type | Segmented bend, reinforced for smoke systems |
| Connection Method | Circular duct ends compatible with fire-rated fittings |
| Use Cases | Smoke extraction, fire-rated HVAC, industrial ventilation |
| Features | High rigidity, corrosion-resistant, low pressure drop, fire-tested component |
