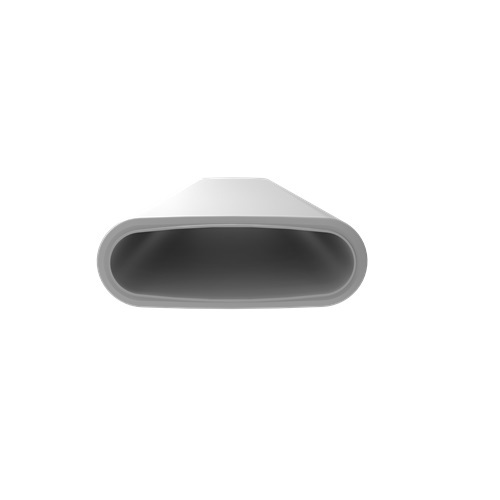

VENTILATION DUCT ARIA FLAT500-50M COIL
HEATPEX ARIA CONNECT 50 m Ventilation Duct Coil is a high-quality, semi-rigid corrugated air distribution duct designed for mechanical ventilation systems, including heat recovery (HRV/ERV).
Made of high-density polyethylene (PE-HD) with Ultra-Fresh® antibacterial and antistatic additives, this duct ensures hygienic air distribution with minimal resistance and noise. The smooth interior and double-wall structure improve airflow efficiency and acoustic comfort. The system achieves the top ATC1 airtightness class (EN 17192), reducing energy loss and noise leakage.
Made of high-density polyethylene (PE-HD) with Ultra-Fresh® antibacterial and antistatic additives, this duct ensures hygienic air distribution with minimal resistance and noise. The smooth interior and double-wall structure improve airflow efficiency and acoustic comfort. The system achieves the top ATC1 airtightness class (EN 17192), reducing energy loss and noise leakage.
€459,43
€459,44
Choose Qty:
Product Details
| Feature | Description |
|---|---|
| Product Type | Semi-rigid ventilation duct (coiled) |
| System | HEATPEX ARIA CONNECT |
| Length | 50 m coil |
| Material | High-density polyethylene (PE-HD) |
| Airtightness Class | ATC1 (EN 17192) |
| Antibacterial Protection | Ultra-Fresh® additive (≈99.99% efficacy) |
| Antistatic | Yes – reduces dust build-up |
| Inner Surface | Smooth – reduces airflow resistance |
| Noise Reduction | Double-wall construction |
| Flexibility | High – easy routing & installation |
| Mechanical Strength | Up to 500 N |
| Available Diameters | 63 mm, 75 mm, 90 mm (external) |
| Typical Catalogue Codes | 52006305000W, 52007505000W, 52009005000W |
| Standards | EN 17192 (airtightness) |
| Application | HRV/ERV and general ventilation installations |
