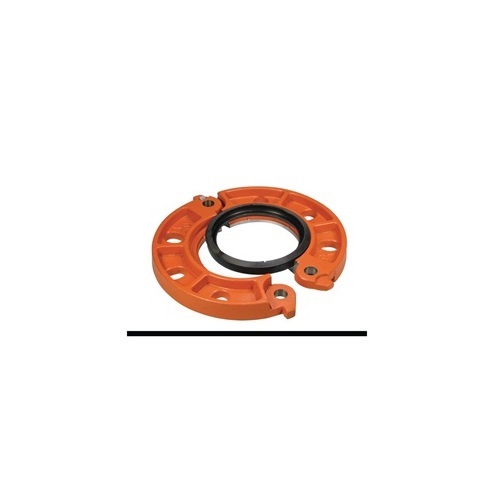

VICTAULIC FLANGE ADAPTOR S741/PN10-10"
The Victaulic Style S/741 flange adaptor (10") is a grooved-to-flanged transition fitting designed to connect grooved piping systems to PN10 (or equivalent ANSI Class 125/150) flanged components. It provides a reliable mechanical connection with a robust ductile iron body and gasket sealing for HVAC, industrial, and fire protection applications.
€357,25
€357,26
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Victaulic |
| Series / Model | S/741 Flange Adaptor |
| Nominal Size | 10" |
| Connection Type | Grooved → Flanged (PN10/ANSI Class 125/150) |
| Body Material | Ductile Iron |
| Coating | Standard black; optional galvanized/other coatings available |
| Gasket Material | EPDM (standard; other selections possible) |
| Maximum Working Pressure | Up to approx. 300 psi / 21 bar (varies with system conditions) |
| Temperature Range | Approx. -34 °C to +110 °C (standard EPDM) |
| Installation | Grooved end into grooved pipe; flange bolted to mating flange |
| Applications | HVAC, fire protection, industrial piping connections |
