VICTAULIC FLANGE ADAPTOR S741/PN10-12"

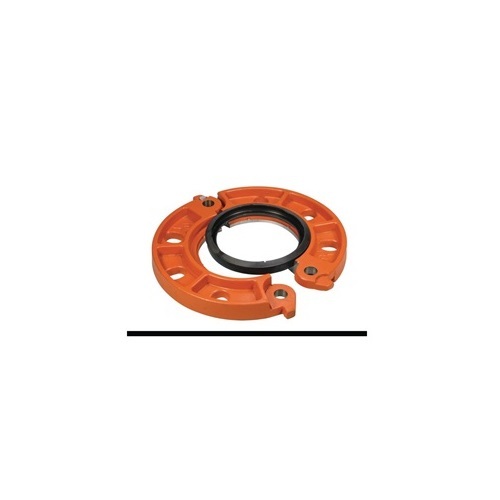

The Victaulic Style S/741 flange adaptor (12") is a grooved-to-flanged transition fitting for connecting grooved piping systems to PN10 (or ANSI Class 125/150 equivalent) flanged components. Designed with a robust ductile iron body and reliable gasket seal, it offers secure and fast mechanical installation for HVAC, industrial, and fire protection systems.
€352,10
€352,11
Choose Qty:
Product Details
| Specification | Details |
|---|---|
| Manufacturer | Victaulic |
| Series / Model | S/741 Flange Adaptor |
| Nominal Size | 12" |
| Connection Type | Grooved → Flanged (PN10 / ANSI Class 125/150) |
| Body Material | Ductile Iron |
| Coating | Standard black; optional finishes available |
| Gasket Material | EPDM (standard) |
| Maximum Working Pressure | Up to approx. 300 psi (varies by system conditions) |
| Temperature Range | Approx. -34 °C to +110 °C (standard EPDM) |
| Installation | Grooved end into pipe; flange side bolted to mating flange |
| Applications | HVAC, fire protection, industrial piping connections |
